Basic Info.
Model NO.
ELPFTFTT02
Types of Suspension Systems
No
Shape
Flatbed
Axle Number
2/3/4
Tire Number
8/12/16
Self-dumping
Not Self-dumping
ABS Anti-lock Braking System
ABS Anti-lock Braking System
Material
Steel
Condition
New
Logo
Customized
Transport Package
Null
Specification
20ft/40ft
Trademark
ELP
Origin
Shandong, China
HS Code
87163990
Production Capacity
500units Per Month
Product Description

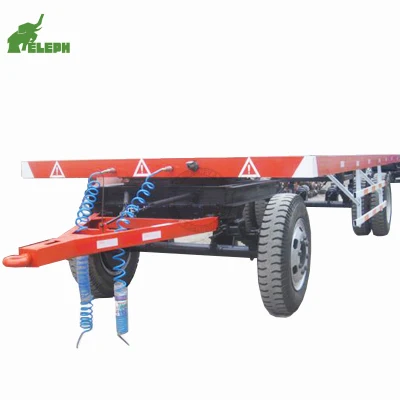

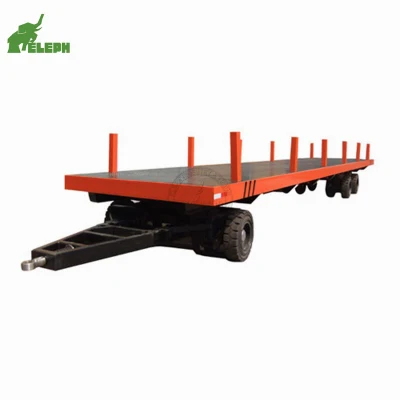

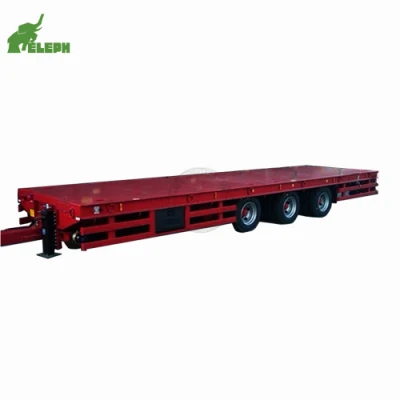

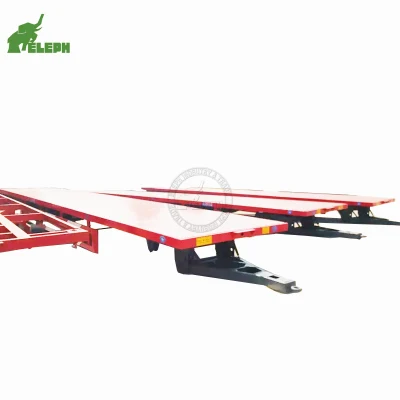

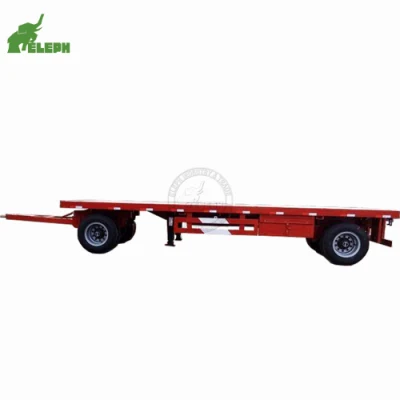

2 Axles 3 axles 20t 20ft 28ft 30ft 40ft Cargo Draw Bar tractor Flatbed Dolly Trailer
RELATED DRAWBAR FULL TYPE TRAILER
ELEPH TRUCK SEMI TRAILERS EXPORTING
| DRAWBAR FULL TYPE FLATBED TRAILER | ||||||
| Axle No. | Axle Location | Tire No. | Length | Rating Capacity | ||
| 1 | Rear | 4 | 4000-7500mm | 15Tons | ||
| 2 | 1+1 | 8 | 7500-12500mm | 40Tons | ||
| 3 | 1+2 | 12 | 12500-15000mm | 60Tons | ||
| 4 | 2+2 | 16 | 15000-18000mm | 80Tons | ||
| Suspension | America type mechanical Suspension | |||||
| Wheel | 11:00 R20 | |||||
| Turntable | Diameter is 1100mm | |||||
| Traction hook | DN50 | |||||
| Traction bar | Length is 1.4m | |||||
| Dimensions(LxWxH) | 7500-18000×2500×1500mm | |||||
| Steel Spring | 10/10 pieces per axles | |||||
| Tire: | ||||||
| The material of Main beam | The height of the beam is420mm,upper plate is 12mm*140,down plate is 12*140mm,middle plate is 6mm(strictly).made of Q345 | |||||
| Platform plate | Skeletal | |||||
| Brake: | WABCO VALVE | |||||
| Brake | Kemi Brand of China | |||||
| Brake Chamber | TWO double and two single chamber( TKL brand ) | |||||
| ABS system | with | |||||
| Electrical: | ||||||
| Voltage | 24V | |||||
| Receptacle | 7 ways(7 wire harness) | |||||
| Light color: | (LED light) | |||||
| Side marker lamp | Orange | |||||
| Rear lamp | Red | |||||
| Turn signal lamp | Orange | |||||
| Miscellaneous: | ||||||
| Painting | Can be choose freely | |||||
| Marking | According to the requirement of the buyer | |||||
| Side Guard | According to the requirement of the buyer | |||||
| Tools box | One pieces or According to the buyer(1m length) | |||||
| Water tank | The size can be choose freely. | |||||
