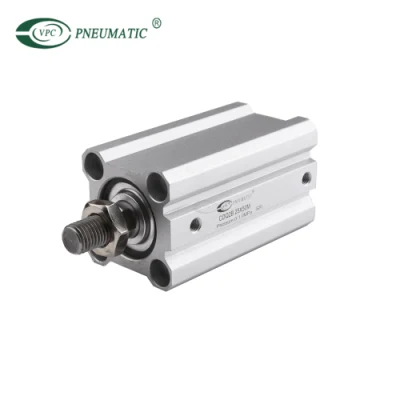

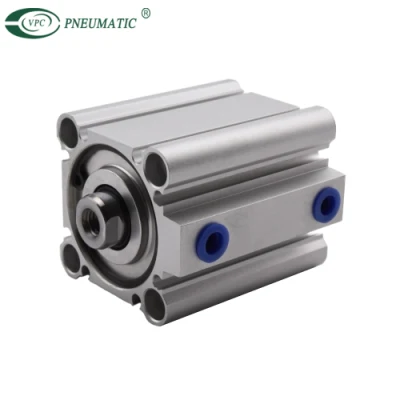

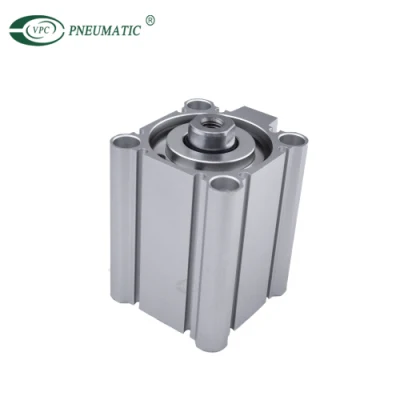

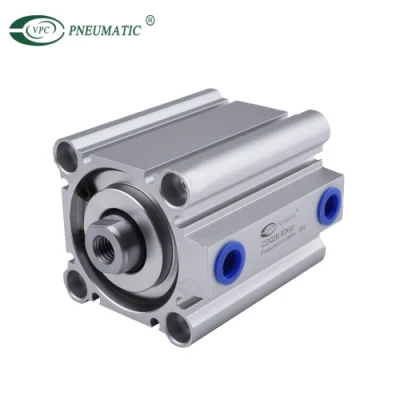

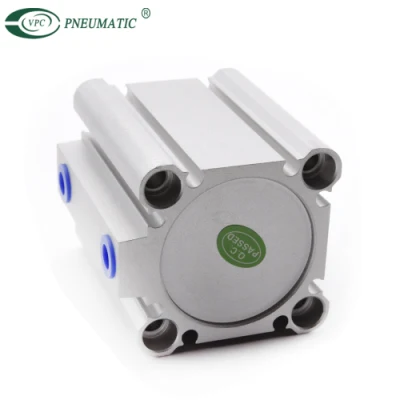

C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder

C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder is a reliable and durable product from our factory. Buy now for efficient air powered performance.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Ordering Code
  • Product Specifications
  • Main Dimensions
  • Company Profile
Overview

Basic Info.

Model NO.
CQ2B 12*10-D M
Brand
Vpc Pneumatic
Work Temperature
Normal Temperature
Material
Aluminum Alloy&Stainless Steel
Working Medium
Clean Air
Guaranteed Pressure
1.5MPa
Working Temperature
5 to 60ºC
Proof Pressure
1.5MPa(215psi)
Stroke Range
25mm to 500+mm
Actingtype
Single Acting Spring Reurn&Double/Single Acting Sp
Temperature
-20 to 70 °c
Speed Range mm/S
Single Acting: 50 to 500mm/S Double Acting:30 to
Stroke Tolerance
Stroke≤150 Stroke>150
Cushion Type
Bumper
Transport Package
Vpc Box
Trademark
CQ2 B 12*10-D M
Origin
China
HS Code
848180219
Production Capacity
1000000/Month

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

C(D)Q2 Series Double Acting Single Rod Compact Air  Cylinder

Product Description
C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder
  • Large Bore standard double acting, single rod version of the CQ2 compact cylinder.

  • The CQ2 is available in bore sizes from 125mm to 200mm. It comes standard with male or female piston rod threads.

  • It is possible to mount auto switches on any of the 4 surfaces.



Ordering Code

C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder

Product Specifications
Bore size (mm) 16 20 12 16 20 25 32 40 50 63 80 100
ActingType Double/Single acting spring extent
Single acting spring reurn
Working medium Clean air
Operating pressure Double acting 0.1 to 1.0MPA(15 to 145PSI)
Single acting 0.2 to 1.0MPA(28 to 145PSI)
Proof pressure 1.5MPA(215PSI)
Temperature -20 to 70 °C
Speed range   mm/s Single acting: 50 to 500mm/s  Double acting:30 to 500mm/s
Stroke tolerance Stroke≤150    Stroke>150
Cushion type Bumper
Port size     M5*0.8 PT1/8 PT1/4 PT3/8
Main Dimensions

C (D) Q2 Series Double Acting Single Rod Compact Air CylinderC (D) Q2 Series Double Acting Single Rod Compact Air CylinderC (D) Q2 Series Double Acting Single Rod Compact Air Cylinder



Company Profile

Ningbo VPC Pneumatic company is dedicated to providing the highest quality hydraulic and pneumatic products in order to assure we achie requisite level of product performance, reliability and value for our customers.We manufacture and export Pneumatic Cylinders,Directional s Valves,air fittings,air hose,air preparation unitspressure regulators,etc pneumatic automation components,these are widely used in automa industrial,robots, packaging equipment, blow molding machine equipment and Medical Industry,food and beverage, metals, mining and min sciences, automotive,marine,transportationwood, paper and printing industries

Export to Europe,latin america the USA,South Asia and middle East,because of high quality,
As a 20 years manufacture,we can rovide professional solutions according to your application needs and use industry.Here are what we can with you
1:Customized products to save your costs
2:Fast delivery and standard package
3:200% test before ship
4:CE/ROHS/ISO/FDAcertificate

C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder C (D) Q2 Series Double Acting Single Rod Compact Air CylinderExpress(DHL,UPSTNTFEDEX) are all available.
Sea and Air transports are available
The most suilable transport way will be chosen for you. C (D) Q2 Series Double Acting Single Rod Compact Air Cylinder

FAQ:
Q1:Are you trading company or manufacturer ?
A:We are the Manufacturer from Ningbo,China.We can customize as your requirement,but MOQ requrement.
Q2:What is your quality assurance?
A:We have strict quality control.If you suffer losses due to transportation orquality failure,you can choose a refund or we can ressue your new goods,the freight will be borne by us.
Q3:Do you provide samples ?ls it free or extra
A:Yes,free samples can be provided, but you'll pay for the shipping fee.
Q4:How long can Iexpect to get the sample and mass order ?
A:For conventional sample order,the delivery time is in 5 workdays,and for mass order,the delivery time is in 10 workdays.
