C147094p02 240V Geya 9-95A Zhe 3 Phase AC Condenser Contactor

Shop the C147094p02 240V Geya 9-95A Zhe 3 Phase AC Condenser Contactor at our factory. Quality electrical components for industrial use. Fast shipping available.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Packaging & Shipping
  • Company Profile
Overview

Basic Info.

Model NO.
GLC1-B CLASS 9A-95A
Support
OEM ODM
Transport Package
Standard Box
Specification
9-95A
Trademark
GEYA
Origin
Zhe

Product Description

Product Description

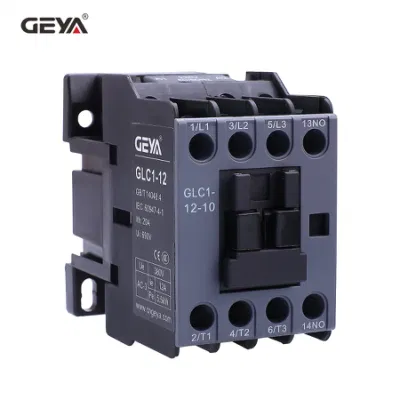

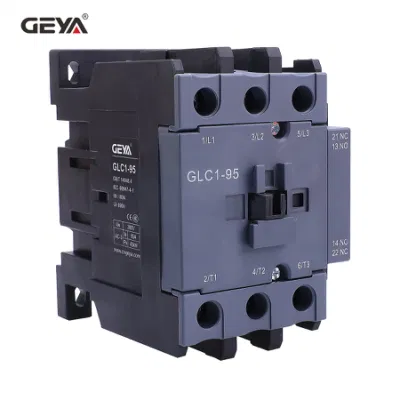

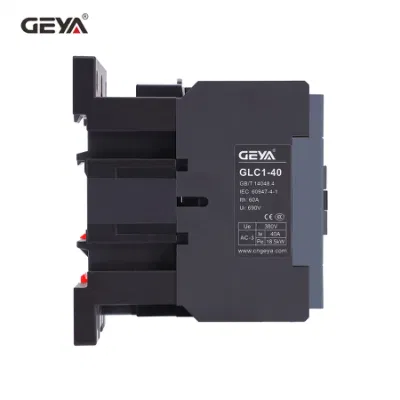

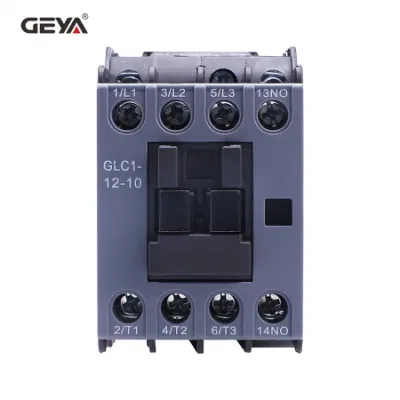

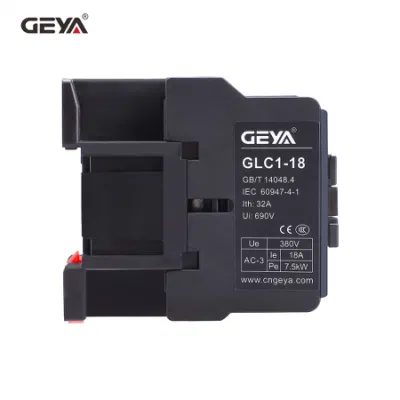

C147094p02 240V Geya 9-95A Zhe 3 Phase AC Condenser Contactor

*40% silver, 09-18 contact plate is iron

*The base adopts V0 grade plastic particles to ensure the flame retardancy and strength of the material. Through the comparative test of glow wire, the plastic particles of the new product have high flame retardancy and do not burn.

*Pass the product drop test to avoid product damage due to falling within 1 meter (with packaging)

*The coil frame is made of V0 grade plastic, which can ensure the heat resistance of the coil

*High-quality enameled wire is adopted. The quality of the enameled wire is stable. The heat resistance grade of qa-1 / 155 coil is high, the temperature rise is ≤ 110k within the standard range, and the weight of coil turns is enough to ensure the stability of coil quality

*Increase the thickness of the edge silver layer and improve the service life of products

*Environmental protection iron core ensures dimensional consistency and product stability

*The key materials are customized to ensure the material stability, optimize the material of leaf spring, optimize the mechanical life to reach 1000 times, and the leaf spring is free from fracture

Contactor Model   GLC1-09
(09Z)
GLC1-12
(12Z)
GLC1-18
(18Z)
GLC1-25
(25Z)
GLC1-32
(32Z)
GLC1-40
(40Z)
GLC1-50
(50Z)
GLC1-65
(65Z)
GLC1-80
(80Z)
GLC1-95
(95Z)
Rated insulation voltage (Ui)   690
Conventional thermal current(Ith)   20 20 32 40 50 60 80 80 100 100
Rated operating current(le) 380V, AC-3 9 12 18 25 32 40 50 65 80 95
380V, AC-4 3.5 5 7.7 8.5 12 18.5 24 28 37 44
660V,AC-3 6.6 8.9 10.6 18 21 34 39 42 49 49
660V, AC-4 1.5 2 3.8 4.4 7.5 9 12 14 17.3 21.3
Rated operating power(Pe) 380V, AC-3 4 5.5 7.5 11 15 18.5 22 30 37 45
380V, AC-4 1.5 2.2 3 4 5 7.5 11 15 18.5 22
660V,AC-3 5.5 7.5 9 15 18.5 30 33 37 45 45
660V, AC-4 1.1 1.5 1.7 4 5.5 7.5 11 11 15 18.5
