China Factory Automatic Door Operators Electric Sliding Gate Motor

China Factory offers high-quality Automatic Door Operators, Electric Sliding Gate Motors. We are a leading factory specializing in motorized gate solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SG
Operating Temperature
-45ºC-+65ºC
Noise
<56dB
Protection Class
IP44
Power Supply
AC 230V/ 120V
Transport Package
One PCS One Case
Specification
270*155*315mm
Trademark
HAIDA
Origin
China

Product Description

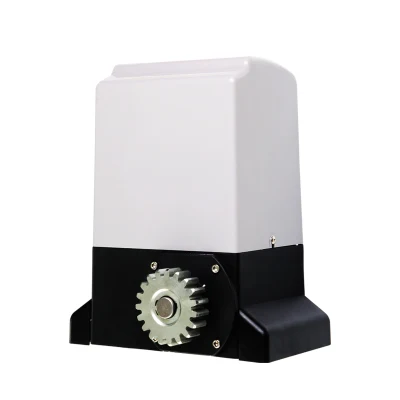

China Factory Automatic Door Operators Electric Sliding Gate Motor
China Factory Automatic Door Operators Electric Sliding Gate Motor



Technical Parameters

Max. Gate Weight 800KG 1000KG 1500KG
Motor Voltage DC 24V/AC 230V/AC 110V
Working System S4-25%
Running Time 10 min

Functions

1.Soft start and soft stop   2.Resistance stop

3.Overloead protection      4.Infrared protection

5.Reserve power

Limit switch Spring/magnetic (NC/NO)
Application  Residential, commercial, and courtyard
Dimension 270*155*315mm
Gate Moving Speed 12m/min
Operating Temperature -45ºC ~ +65ºC

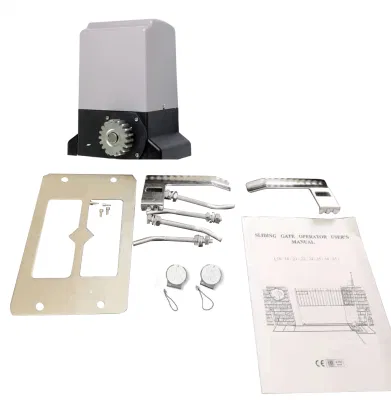

Standard Configuration 1*motor,1*control panel,2*manual Override Keys ,remotes,fixing hardware
Optional Accessories Alarm lamp, mounting plate, wireless keypad, wireless wall button, etc
Certificates CE,CCC



Product Details
China Factory Automatic Door Operators Electric Sliding Gate Motor

Product Features

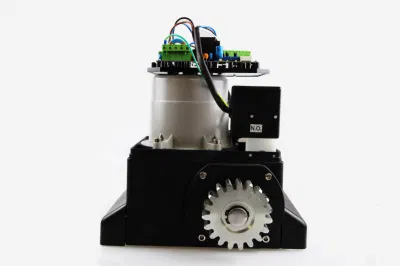

A.Brushless waterproof motor:High-speed pure copper core powerful motor.More stable operation and super mute.

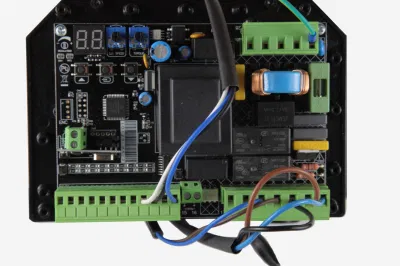

B.Control chip:Multi-function wiring port,multi-speed adjustment,resistance adjustment, door closing delay adjustment,Super large transformer,more convenient functions.

C.The ultra-quiet system:provides a long operating life with minimum maintenance requirement.

D.Install infrared sensor:By installing an infrared anti-induction device,if the door opener deters an obstacle within the monitoring range during the closing process, the door opener stops closing and opens immediately.

E.Equipped with manual release key :in case of power outage or when you lose your remote.

F.It can be used on 230V/110V/24V.

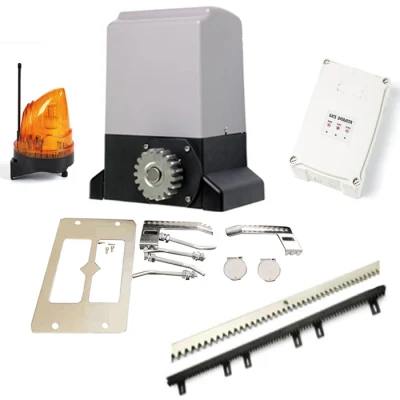

Optional Accessories
China Factory Automatic Door Operators Electric Sliding Gate MotorAppliction
China Factory Automatic Door Operators Electric Sliding Gate Motor

It can be installed on various stainless steel doors, iron art doors, copper art doors and solid wood doors.
Typical application includes residential, commercial, and courtyard.

Installation Overview
China Factory Automatic Door Operators Electric Sliding Gate Motor
FAQ
Q:What is the minimum quantity ?
We can sell even 1PCS



Q:How many sliding gate models do you have?

We have 500kg,800kg,1000kg,1500kg,2500kg automatic sliding gate.



Q:Can you send samples before place the order?
Yes,sure.we can provide samples for quality checking.



Q:Do you provide OEM service?
Yes,we do



Q:How about the payment terms ?

T/T,D/P,L/C,Paypal,Western union and cash all acceptable.



Q:How about your quality warranty?

When the products got problem during our warranty period,we will provide





Thanks.If you want to know more,please send your inquiry to us.
