CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs

Welcome to our factory with CNC Spring Coiling Machine for Metric Extension Springs. Our high-quality 2 Axis KCT-8C Stainless Steel Springs are perfect for all your spring needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Packaging & Shipping
  • Company Profile
  • Our Advantages
  • Related Products
  • FAQ
Overview

Basic Info.

Model NO.
KCT-8C
Suitable for
Copper, Aluminum, Alloy, Carbon Steel, Stainless Steel
Type
Hydraulic Bending Machine
Model No
KCT-8C
Axis Count
2-3
Wire Size Range
0.15-0.8mm
Max Outside Diameter
20mm
Max Feeding Speed
50m/Min
Max. Production Rate
400PCS/Min
Power
3-380VAC
Dimension
900*1000*1500
Motor Brand
SANYO
Weight
450KG
Application
Spring Making
Material
Stainless Steel, Carbon Steel, Inconel, Aluminum
Trade Term
FOB/EXW/CIF/FCR
Lead Time
7-35 working days
Power AC
380V 50/60HZ
Transport Package
Wooden Case & Vacuum Packed
Specification
CE, ISO9001-2008, SGS
Trademark
KCMCO
Origin
China
HS Code
846300000
Production Capacity
30 Sets/Month

Product Description

8C High Speed CNC Spring Coiling Machine KCT-8C 0.15-0.8mm wire diameter
Product Feature:

This machine is suitable for making compression spring, torsion spring and extension spring with the advantage of shorter-testingtime and high production rate.
CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs
Product Description
Model No KCT-8C
Number Count 2 Axis
Wire Diameter 0.15-0.8mm
Max. Outer Diameter 20mm
Feed Servo Motor 1.0KW
Cam Servo Motor 1.0KW
Loading Port Shenzhen
Trade Term FOB/EXW/CIF/FCR
Max. Production Rate 400pcs/min
Machine Weight 350KG
Packaging Dimension 900*1000*1500mm

Production Features
2 Axis High Speed Coiler
Repeat Function
Teach/Edit
Test Function
High Precise of feeding
Japan Servo Motor
Taiwan Controller
Import Bearing Gear



Detailed Photos

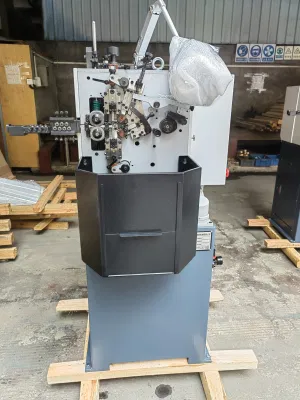

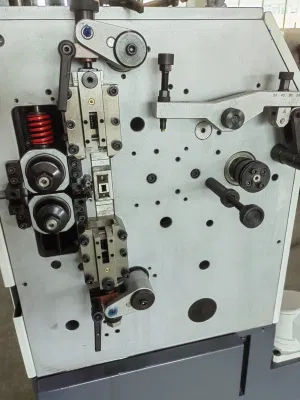

CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension SpringsCNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension SpringsCNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs



Packaging & Shipping

CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension SpringsCNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension SpringsPackaging Methods:
1.One Tooling Box with all drivers and different kinds of screws and other stuffs.
2.Standard Fumigated Wooden Case&Vacuum Packing
3.Inside with Bubble Foaming Packed.
4.Complete Closed Vacuum Paper with Hot Sealing Machine.
5.The outside of wooden box have the signal to load safely.

Company Profile

KCMCO focus on advanced computerized multi-axis spring machine, camless spring machine, cnc versatile spring rotating and former machine & wire bending machine & cnc compression spring machine, decoilers & accessories by introducing Taiwan controlling technology and Japan servo motor and imported bearing gear to produce variety of springs with the feature of high precision of feeding, stable, easy operation and precise shaping as well as novel and attractive appearance.

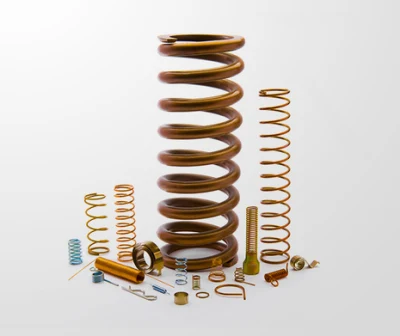

KCMCO Spring Machine allowed to produce different types of springs including torsion spring, tension spring, compression spring, wave spring ,valve spring, flat sprial spring, tower spring and specialty springs, which is widely applied to Automation, Automobile, Electronics, New Energy and other machineries industries.
CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs

Our Advantages

KCMCO, founded in 1986, is located in Dongguan Guangdong Province of China. We specialize in CNC Spring Coiling Machine, Camless CNC Multi Axis Spring Machine, Wire Bending & Forming Machine with wire diameter from 0.15mm to 8.0mm for different applications and industries,which include Automotive, Industrial Machinery, Building Construction and Equipment, Civil Engineering Machinery and Industrial Vehicles, Aviation Industry, Oil Seal Industry, Medical and Pharmacy Industry, Manufacturing, Agriculture, Transport, Healthcare, Food Service, Electronics, Security Nano Technology and architecture equipments and so on.
KCMCO has been one of top 3 spring machine manufacturing vendor in China since 2019. Our products are mainly exported to North America, Canada, The United Kindom, The United States, Korea, South Africa, Australia, Russia, Germany, Saudi Arabia, South Korea, North Korea, Netherlands, New Zealand and so on. Currently our products has covered more than 30 countries and regions based on our strong capacity of spring machines and our skilled engineers and technicians in the office. We also have all certificates available which include CE, ISO9001, SGS for our customers from all over the world. We can offer online services 7/24 and free samples for core components if needed to help when purchasing our products within 1 year. We can also send our technicians to factory site for customers for free as long as our customer offer all transportation and accommodations fees.

CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs

Related Products

CNC Spring Coiling Machine


CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs
KCT-680 6 Axis CNC High Speed Spring Coiling Machine is composed by 6 Japanese Yaskawa servo motors and Yitu computer control system, each axis can operate independently and synchronously.The company's design team has made major reforms in terms of innovation and improvement, and truly realized the human-machine dialogue.It has the characteristics of one-minute spring forming, high speed, accurate precision, low noise, saving debugging time and wire cost, etc.It has straight cutting, right cut, swing cut, and torsion cut for oil tempered wire high-definition photography detection function.
It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and difficult shaped springs.



Wire Bending & Forming Machine
KCT-1245WZ Camless CNC Versatile Spring Rotating Forming Machine is composed by Taiwan computer system and Japan servo motor special designed with no rocker arm and camless, the slide base is separately controlled by eight servo motor, feeding axis, quill rotation axis, wire rotating axis and spinner axis. The machine optional with device of servo scissors, servo spinners, and servo cutters, with low noise.The damage is zero on mandrel and machine.
It is suitable for making kinds of tension spring, torsion spring, compression spring, scroll spring, tower spring, flat wire spring and difficult shaped springs.
CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs


Camless CNC Multiple Axis Spring Machine
CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs
KCT-1020WZ 10 Axis Camless CNC Universal Spring Forming Machine which is upgraded to camless machine basing on our traditional 3 axis KCT-20B cam eight claw machine.The wire size range is 0.2-2.0mm, suitable for the production of a variety of precision pressure spring, pull spring, torsion spring, scroll spring, tower spring, flat spring, shaped spring and line forming products, widely used in electronics, toys, office consumables, medical equipment, daily fixture, automative, national defense and aerospace industries.Compared with the traditonal cam spring machine, the operation difficult is reduced, and the adjustment speed is increased by more than 50%, which greatly improves the work efficiency.



FAQ

Q1: How to place the order?
A1: You can place the order by email us or reach us directly with your contact information.

Q2: What is the MOQ?
A2: One set. The more you have, the better price you will get.

Q3: What is the payment term?
A3: The payment term is 30% deposit as PO confirmation, and 70% before the shipment.We also accept other payment term.

Q4: What is the delivery time?
A4: Normally the delivery time of the machine is 30-40 working days after receiving deposit.But it all depends on machine models you place the order. Some of them could be shipped within 7 working days if we have that machine available in our warehouse.

Q5: What is the guarantee period of the machine?
A5: The guarantee period is one year for the core components like motor from the date of B/L.

CNC Spring Coiling Machine with 2 Axis 0.15~0.8mm KCT-8C Stainless Steel Springs for Metric Extension Springs When order CNC Spring Machine, please notice the below information:
Spring Material
Wire Size Range
Outer Spring Diameter or Inner Spring Diameter
Coils of Number or Spring Coils
Spring Height
