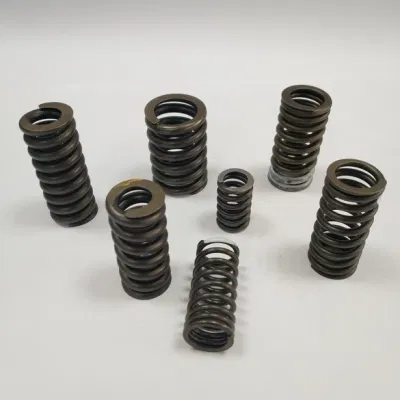

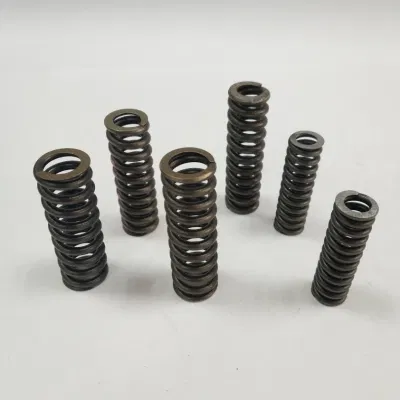

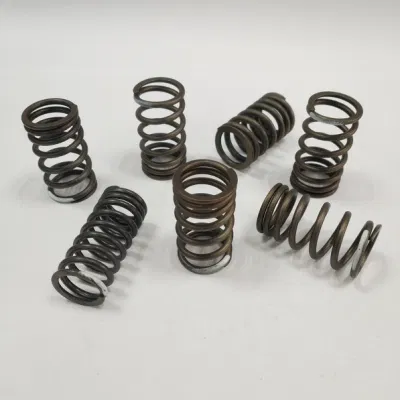

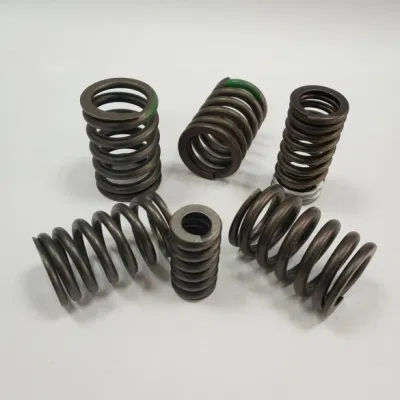

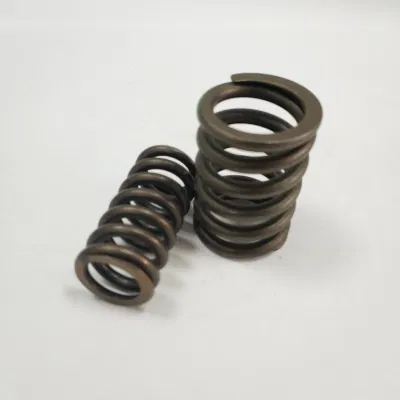

Customized Coil Compression Helical Valve Spring for Car Engine Motor

Looking for a reliable coil compression helical valve spring for your car engine motor? Look no further! Our factory produces customized springs for superior performance.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
VS-001
Wire Range
From Min 0.1mm(0.004inch) to Max 12mm(0.48inch)
Material Standard
DIN17223, 2fd Sicr, 55sicr, Fd Sicr, Td Sicr
Transport Package
Carton
Specification
customized
Origin
China
HS Code
73202090
Production Capacity
100000000

Product Description

TEMB has been specialized in spring for 20 years. With 15 computer coiling machines, 13 heat-treatment furnaces, 16 spring grinding machines, 6 chamfering machines, 8 setting machines, 5 shot-blasting machines, 1 full automatic load sorting machine, 8 fatigue machines, 6 tension and compression testing machines, TEMB can produce all kinds of springs with diameter 0.2~12.0mm, annual capacity 80 million pcs.
We have established long and friendly cooperation relationship with high level steel manufacturers at home and abroad, ensuring the reliable raw material quality, such as SUMITOMO and Suzuki Garphyttan from Japan, KISWIRE from Korea, and SINOSTEEL from China.


#1 ATTN: Read This Before Buying

A. Due to the internet and computer display solutions. The actual products may differ from
the pictures. Please contact our salesmen for further assistance.
B. All the extension springs, compression springs, torsion springs, wire forms can be made in customized demands.
C. We appreciate Drawing-Guide Production, Please send us a spring drawing as possible as you can when you inquiry.
D. We appreciate your inquiries and you are welcome all the time!

For a better understanding of your demand, please learn the basics of compression spring manufacturing.
#2 Working Drawing of a Compression spring
Customized Coil Compression Helical Valve Spring for Car Engine Motor

#3 Different End Types of Helical Compression springs
There are basically four types of ends, closed & ground, closed & not ground ends, open & ground ends, and open & not ground ends. Below is a diagram for illustration.
Customized Coil Compression Helical Valve Spring for Car Engine Motor

#4 Different Shapes and Applications of Helical Compression Spring
Compression springs are helical or spiral-like-springs. They demonstrate an open-coiled design and react to axis forces to store and return energy. Manufacturers build compression springs into a variety of products, such as Automobile suspensions, Couches, Mattresses, Vending machines, Medical devices, Pacemakers, Pens, Hydraulic, Medical, Lawn equipment, Firearms, Marine industry, Underwater oil rig piping, Watches
Different products require different shapes to meet their demand. The below diagram covers the common shapes of compression springs, such as conical spring, barrel spring, variable pitch spring, straight coil spring(cylinder spring) which are the most common springs, etc.
Customized Coil Compression Helical Valve Spring for Car Engine Motor

Customized Coil Compression Helical Valve Spring for Car Engine Motor Customized Coil Compression Helical Valve Spring for Car Engine Motor Customized Coil Compression Helical Valve Spring for Car Engine Motor Customized Coil Compression Helical Valve Spring for Car Engine Motor Customized Coil Compression Helical Valve Spring for Car Engine Motor Customized Coil Compression Helical Valve Spring for Car Engine Motor
Customized Coil Compression Helical Valve Spring for Car Engine MotorCustomized Coil Compression Helical Valve Spring for Car Engine MotorCustomized Coil Compression Helical Valve Spring for Car Engine Motor

FAQ

Q: Which kind of materials are available?
A: TEMB Spring is able to manufacture different spring types of compression springs, extension springs, torsion springs, wire forms with a large range of High-Grade Spring Steel - Carbon steel - Stainless steel - Music Wire.
The wire diameter is available from 0.2~12.0mm, which can meet the requirement of different applications.

Q: Do you support orders in small quantity or do you only accept large runs?
A: TEMB Spring manufactures large quantity springs, small quantity springs based on your demand.  We will work with you to choose the most effective solution.

Q: Does TEMB spring offer DESIGN service OR initial ASSISTANCE ON SPRINGS?
A: Our engineers could give initial assistance on the design and advise to lower the production cost. Our engineer has years of experience in spring design. We could provide drawing format in CAD, 3D, and 2D design layout as well as prototype development.

Q: What is the typical lead time for custom springs?
A: The lead time varies in custom springs. For compression springs, extension springs, torsion springs, wire forms in our mold range, we are able to deliver within 25 days. However, for some complex shapes of springs, the delivery time would be around 30~40 days.

Q: Do you charge custom spring samples?
A: We make the custom springs sample charge as a subscription of formal order. In other words, the sample charge could be refunded when we receive the order.
 However, if your sample requires an additional mold, we will charge it.

Q: If we order large quantity springs, will you house the springs, wire forms, and ship to us based on a required basis?
A: Our warehouse provides specific stock service for long term business. You can make your shipment schedule on an annual, monthly basis. We will ship on a specific schedule.
