DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder

Get high-quality DNC Series ISO 6431 Standard Double Acting Pneumatic Cylinders direct from the factory. Durable and efficient for all your pneumatic needs.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Product Feature
  • Ordering Code
  • Specification
  • Main Dimensions
  • Company Profile
Overview

Basic Info.

Model NO.
DNC 32*50-20-PPV-A-S2
Brand
Vpc Pneumatic
Work Temperature
Normal Temperature
Material
Aluminum Alloy
Acting Type
Double Acting
Working Medium
Clean Air(40um Filteration)
Working Pressure Range
0.1-1.0MPa
Guaranteed Pressure
1.35MPa
Speed Range
50-800mm/S
Cushion Type
Adjustable Cushion
Transport Package
Vpc Box
Trademark
Bore from 32 to 125mm
Origin
China
HS Code
848180219
Production Capacity
1000000/Month

Packaging & Delivery

Package Size
15.00cm * 10.00cm * 20.00cm
Package Gross Weight
1.000kg

Product Description

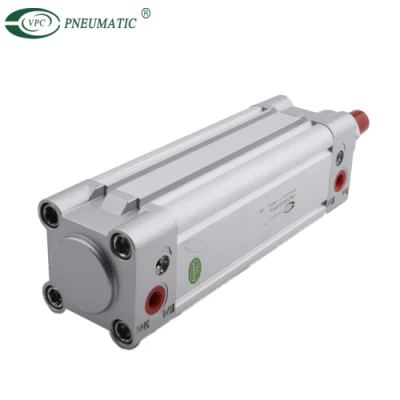

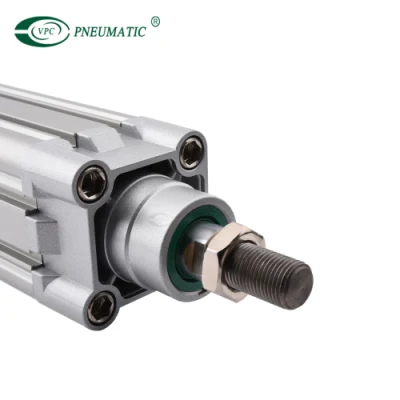

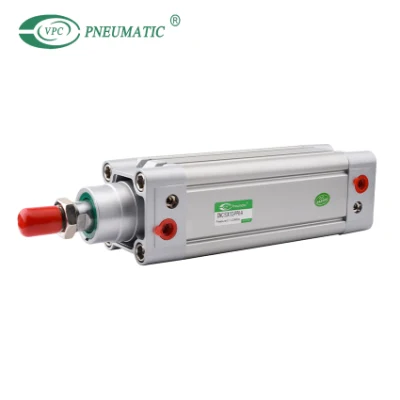

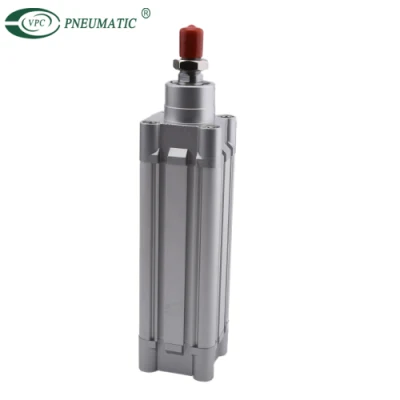

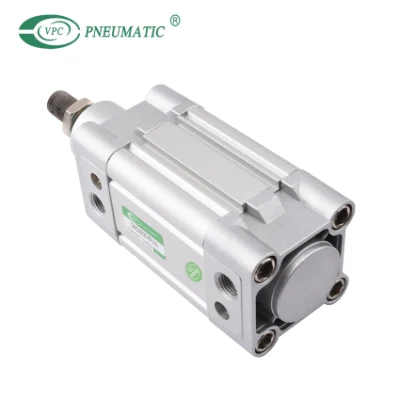

DNC Series ISO 6431 Standard Pneumatic Cylinder  Double Acting Pneumatic Cylinder
Product Description
DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder
DNC Series ISO 16431 pneumatic actuators are used to provide straight-line, in/out linear movement for a variety of applications.
  1. ISO 15552 (ISO 6431, VDMA 24562).
  2. Wide range of variants for customized applications.
  3. Comprehensive range of mounting accessories for just about every type of installation.
  4. Magnetic piston for position sensing.
Product Feature

1. The piston seal is composed of two Y-shape one-way seal structure, which has compensation function, long service life and low start-up pressure.

2. The square aluminum pipe without tie rod has good corrosion resistance.

3. The buffer adjustment of cylinder is smooth and steady.

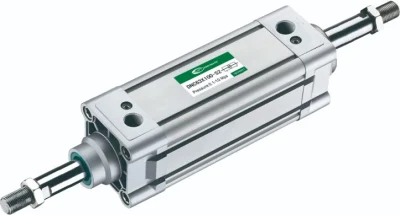

4. Available as single acting (spring extend or spring return actuators) and double acting styles with single rod or double rod configurations, non-rotating, and precision non-rotating models.

5. Cylinders and accessories for installation with several specifications are optional.

Ordering Code

DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder

Specification
Bore(mm) 32 40 50 63 80 100 125
Acting type Double acting
Working medium Clean air(40um Filteration)
Mounting type DNC Series:Basic type FA FB CA CB LB TC TC-M
DNC-S2 Series:Basic type FA  LB TC TC-M
Working pressure range 0.1-1.0Mpa
Guaranteed pressure 1.35Mpa
Working temperature 5-70ºC
Speed range 50-800mm/s
Cushion type Adjustable cushion
Cushion Stroke 24mm 32mm
Port size G1/8 G1/4 G3/8 G1/2
Main Dimensions

DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic CylinderDNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic CylinderDNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder

Company Profile

Ningbo VPC Pneumatic company is dedicated to providing the highest quality hydraulic and pneumatic products in order to assure we achie requisite level of product performance, reliability and value for our customers.We manufacture and export Pneumatic Cylinders,Directional s Valves,air fittings,air hose,air preparation unitspressure regulators,etc pneumatic automation components,these are widely used in automa industrial,robots, packaging equipment, blow molding machine equipment and Medical Industry,food and beverage, metals, mining and min sciences, automotive,marine,transportationwood, paper and printing industries

Export to Europe,latin america the USA,South Asia and middle East,because of high quality,
As a 20 years manufacture,we can rovide professional solutions according to your application needs and use industry.Here are what we can with you
1:Customized products to save your costs
2:Fast delivery and standard package
3:200% test before ship
4:CE/ROHS/ISO/FDAcertificate

DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic CylinderExpress(DHL,UPSTNTFEDEX) are all available.
Sea and Air transports are available
The most suilable transport way will be chosen for you. DNC Series ISO 6431 Standard Pneumatic Cylinder Double Acting Pneumatic Cylinder

Q1. What is the ISO standard for the pneumatic cylinder?

The ISO 6431 cylinder standard refers to the dimensions of the basic product and the size of the cylinder when mountings and accessories are applied.



Q2. What is stroke size in pneumatic cylinder?

The cylinders are available in bores of 32, 40, 50, 63, 80, 100 and 125 mm, with stroke lengths from 10 mm to 100mm. Single-acting cylinders with spring return in the retract direction are available in stroke lengths up to 80 mm.



Q3. How do I increase the pressure in my pneumatic cylinder?

Another way to increase or decrease the forces generated by the cylinder is to choose a cylinder with either a more significant (Greater force) or smaller (Less force) diameter. Remember, the larger the diameter, the greater the surface area of the piston, and the greater the pressure.



Q4. How do you adjust air cylinder speed?

When the cylinder piston extends, the air behind it is compressed because air can't escape easily. When you tighten the flow control screw, the movement of the piston slows down because air is restricted even further. Controls the speed of a cylinder or restricts air flow. Simply turn the needle valve to adjust air speed.



Q5. How do you calculate pneumatic cylinder force?

Use the cylinder diameter (d) to calculate the cylinder working area (A), which is A = π × d² / 4.

Determine the working pressure (P) inside the cylinder.

Multiply the pressure (P) by the area (A). In that way, you calculate the pneumatic cylinders theory push force (F), F = P × A.

-pneumatic cylinder force calculator



Q6: Do you sell pneumatic cylinder repair kits?

Yes, we sell all types of cylinder repair kits and other accessories. Please get in touch with us if you need any.
