Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Get the best Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS) from our factory. High-quality and reliable security solutions for your cabinets and electronic lockers.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MA1208LS
Certification
RoHS, FCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community, Electronic Smart Lockers and Vending Machine Kiosk
Working Principle
Electronically Controlled Lock
Function
Fail-Secure
Type
Electromagnetic Lock
Operation Voltage
12/24VDC
Power Consumption
12V DC 800mA
Max. Power on
Intermittent
Operation Mode
Fail Locked
Holding Force
150kg
Cycle Rating
More Than 1, 000, 000 Times
Ms Contact Rating
3A @125V
Working Temperature
-20oc ~ +60oc
Dimensions Lxwxh
72mm*56mm*13.8mm
Protection Class
IP20
Certificates
CE RoHS FCC ISO9001
Service
OEM/ODM/Customization
Transport Package
145mmx80mmx70mm
Specification
Stainless steel 304 optional
Trademark
eboxlock
Origin
China
HS Code
83013000
Production Capacity
10k Per Month

Packaging & Delivery

Package Size
12.00cm * 9.00cm * 8.00cm
Package Gross Weight
0.220kg

Product Description

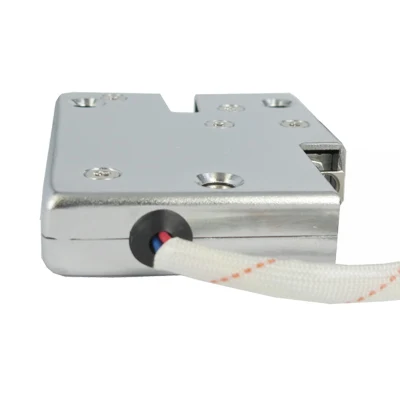

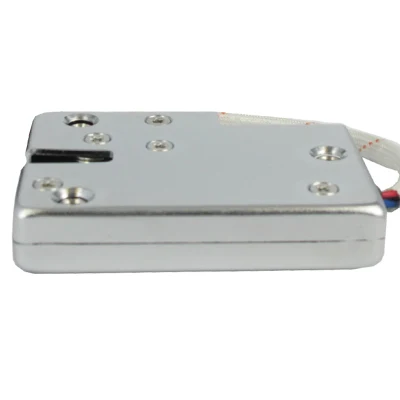

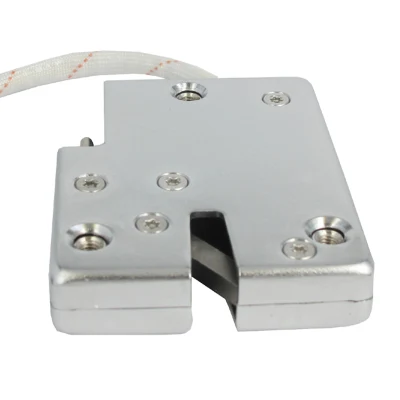

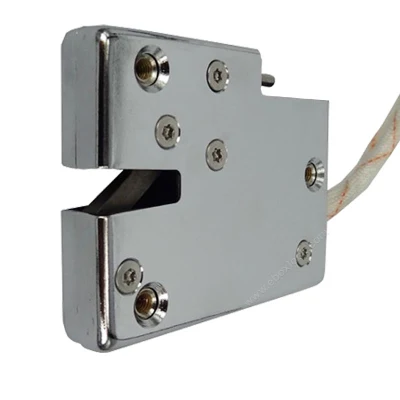

Electric Cabinet Lock (MA1208LS) is a compact and all-metal lock with monitoring, the electric lock is ideal for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. An optional microswitch provides an output signal for remote monitoring or external access system control. It allows mechanical override for emergency open. Eboxlock Electric Cabinet Lock is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Features
Available in 12VDC or 24VDC
Superior heavy duty metal construction
Chrome-plated steel housing
Convenient mechanical override enables manually release during power failure
Three-bolt regular triangle mounting enables high security and low install cost
Optional internal lock switch for detecting open/close output signal
Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
Can be fitted to Cabinets, lockers, drawers and steel furniture etc
Patented Design
2 years limited warranty

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Specifications

Operation Voltage                              12/24VDC intermittent ±10%
Power Consumption                           12V DC   800mA
Operation Mode                                  Fail Locked
Holding Force                                     150KG
Maximum power on time                     Less than 30 second
Solenoid                                              Rated for intermittence use
Cycle Rating                                        More than 1,000,000 times
MS Contact                                         Rating 2A @25V
Mechanical Override                           29.5mm gap
Working Temperature                         -20ºC ~ +60ºC
Dimensions LxWxH                             72mm*56mm*13.8mm
Gross Weight                                      250g
Protection Class                                  IP35
Compliance                                         CE and RoHS certificate


Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

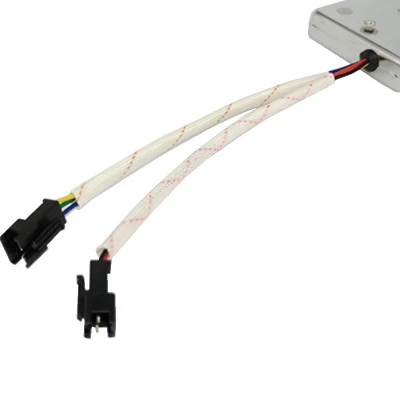

We offer customization for cable length and connector type to better meet the exact requirement of your application.
Options for customization
Voltage Current Trigger Spring Mounting holes Material Cable Connector
9V
12VDC
24VDC
48V
800mA
1500mA
2000mA

5N
7N
15N
18N

M4x12 thread
M4x12 thru

Steel
Stainless steel

Twisted
RVV
Flat cable
Molex
KF2510
PH
RJ11

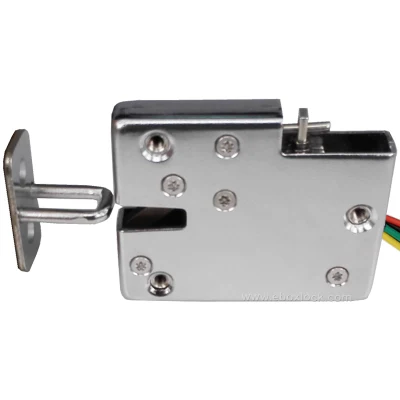

Package includes:
Applications:
1x lock body
1x hook
3x M4x12mm round head screws
3x M4x8mm sunk screws



Applications:
The electric cabinet lock is ideal for various applications as following:
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks and Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers & Keyless Refrigerator Lockers

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

Electric Lock for Cabinets and Electronic Lockers with Door Status Reporting (MA1208LS)

About Us

Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.

Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.

Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.
