Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine

Find reliable Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine at our factory. Quality assured products for efficient vending systems.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
DJ5-AS2
Certification
RoHS, FCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Company, Garage, Community, Parcel Delivery Locker
Working Principle
Electronically Controlled Lock
Function
Fail-Secure
Type
Push on Lock
Power Consumption
200mA@12VDC or 24VDC
Materials
Steel Plus Flame Resistant Plastic
Finish
Silver Powder Coating
Holding Force
Withstand 7000n of Force
Maximum Power on Time
1 Second
Holding Function
Optional
Monitoring
Door Status and Latch Status
Spring Door Opening
Various Spring Tension
Cycle Testing
300,000 Cycles
Customization
OEM&ODM
Mechanical Override
Optional Override Kits
Control System
Smart Parcel Delivery Locker System
Certificate
CE RoHS FCC
Transport Package
13cmx11cmx9cm
Specification
CE and RoHS
Trademark
eboxlock
Origin
China
HS Code
83013000
Production Capacity
10K Per Month

Packaging & Delivery

Package Size
12.00cm * 11.00cm * 7.00cm
Package Gross Weight
0.360kg

Product Description

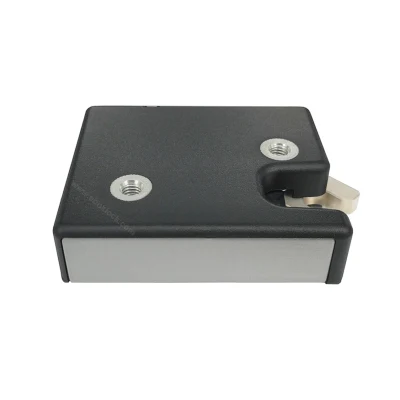

Electronic Rotary Latch DJ5-AS2 is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with dual sensors for door and lock for double security. An optional mechanical kits for manual override in case of power failure. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of heavy duty vehicles, Electronic Locker Lock System and equipment.


Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine

Features

  • Low Power Consumption
  • Tough metal/ABS construction, stainless steel option
  • Driven by gear motor
  • Operates against heavy mechanical loads
  • Optional internal microswitch for reporting open/close status
  • Push to lock and electronic release
  • Corrosion-resistant version available for outdoor use
  • High strength and durability
  • Accept control inputs from any access control devices

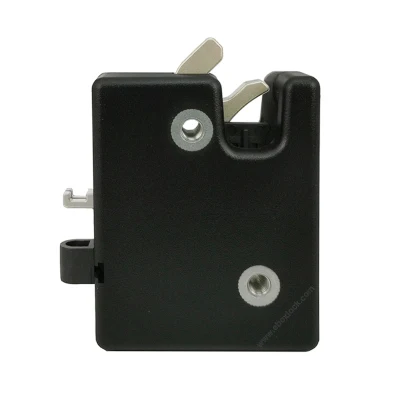

Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine

Specification:

Operation Voltage: 12VDC ±10%
Power Consumption: 200mA
Operation Mode: Fail Locked
Max. Power On 1 second
Holding Force: 600KG
Cycle Rating: More than 300,000
MS Contact Rating: 5A @125V
Working Temperature: -20ºC ~ +60ºC
Dimensions LxWxH: 76mm*62.5mm*20.3mm
Weight: 260g
Protection Class: IP40

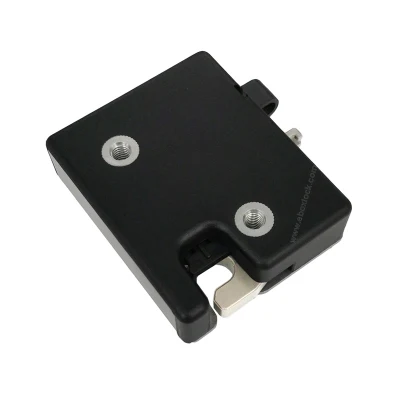

Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine


We offer customization for cable length and connector type to better meet the exact requirement of your application.

Options for customization
Voltage Current Trigger Spring Mounting Material Cable Connector
9V
12VDC
24VDC

200mA

4N
7N
15N
21N
M6 thread
(standard)

M6 thru (optional)
Steel (standard)
Stainless steel
(Optional)
Twisted
RVV
Flat cable
SM(standard)
Molex
KF2510
PH
RJ11


Applications:
The electronic cabinet lock is ideal for various applications as following:
Electronic lockers for storage or delivery
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and lock box

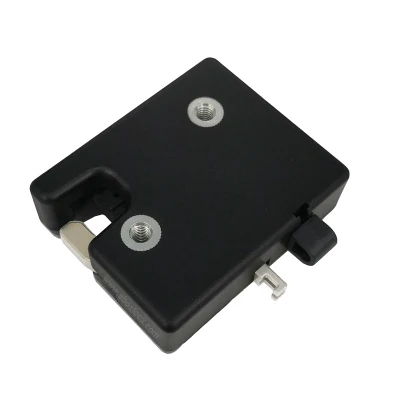

Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine


Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine
About Us

Dajiang is a designer and manufacturer specializing electrified locking solutions for lockers, cabinets and kiosks. No matter size-restricted enclosures or heavy-doored metal cabinets; we can meet your particular security requirement with customized design for your applications.

Our ranges cover electronic cabinet locks, electronic drawer locks, smart parcel locker control system, vending machine control system, and IOT control hardware and software. With professional security control solution, Dajiang locks and controllers is ideal for areas of parcel locker, smart lockers, vending lockers, cash drawers; post mailboxes; medicine and archive cabinets; Key Cabinets and mailbox.

Quality control melts into the whole process and our products are completed under continuous supervise and multistage of tests. We are very proud of our product and service. We are confident you will enjoy the experience with us and appreciate all opportunity to answer any questions or provide any further information.

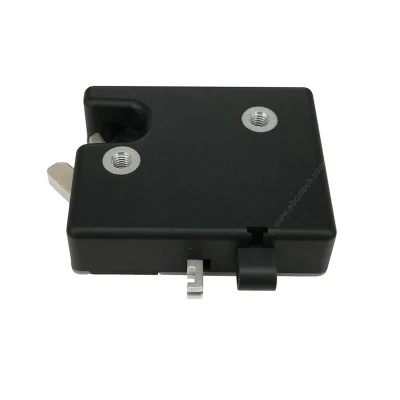

Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine
Electronic Rotary Latches with Dual Sensors for Pharmacy Vending Machine
