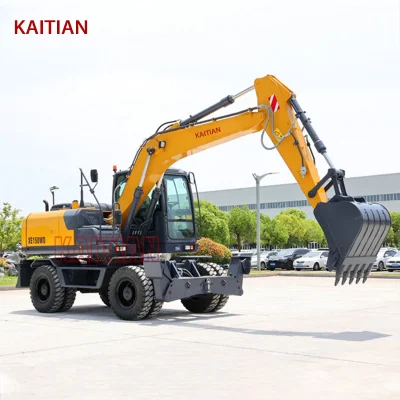

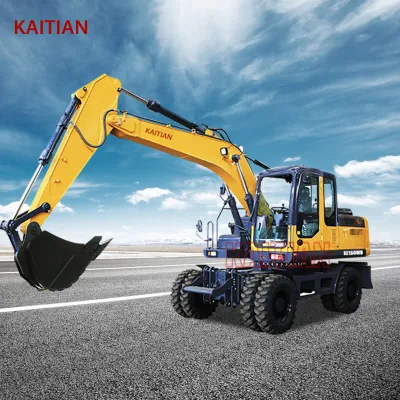

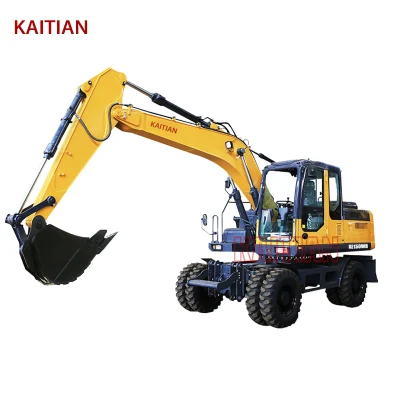

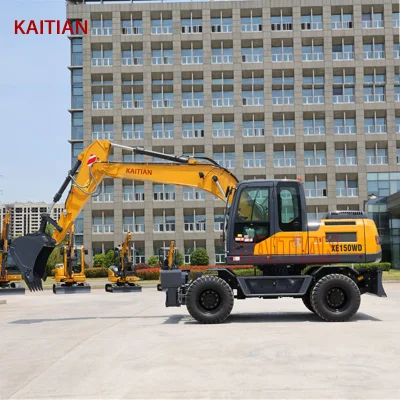

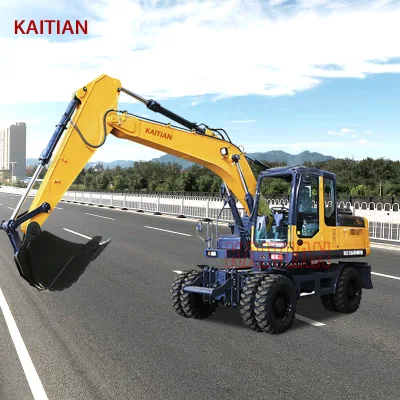

Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader

Introducing our Forest Excavator Loader - the perfect solution for handling small logs with ease. Made in our factory with the highest quality materials.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
XE150WB
Drive Type
Electric Drive
Bucket Capacity
0.1~0.5m³
Size
Medium-Sized
Certification
CE
Condition
New
Operating Weight
14 Ton
Power
104kw
Rated Speed
2000rpm
Maximum Digging Height
8190mm
Maximum Digging Depth
4630mm
Transport Package
40hq Container
Specification
14000kg
Trademark
KAITIAN
Origin
China
Production Capacity
2000sets/ Year

Product Description

Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader
>> Introduction
XE150WB hydraulic excavator is suitable for earth and stone construction projects such as municipal construction, highway bridges, housing construction, road engineering, farmland water conservancy construction, port construction and so on, it has features of good flexibility and maneuverability, low fuel consumption, high construction efficiency.
New generation environmental engine is adopted in this machine, which has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader

>> Characteristic
>> The complete vehicle adopts original engine that is imported from international renowned brand, Also, it introduces the constant power control system to give full swing to the engine power, and to provide the excavator with strong power.
>> hydraulic Medium excavator has both excellent environmental performance and large power, matched with ow fuel consumption design, operating costs are significantly reduced.
>> Leather seats, with seat belts and handrails, can be adjusted before and after, with adjustable rear corners.
>> German MA brand continental hydraulic hose is an international brand with stable and reliable quality.
>> The external hydraulic hose is equipped with spring retainer and spiral protection hose to avoid friction, collision, bending and other damage
>> The action levers are equipped with dust covers and portable handrails
>> The main console is composed of three parts. The overall shape is like a "fist", rich in tension, streamlined trend design, calm and domineering, which is in line with the aesthetics of the East and the West. The connector adopts stainless steel countersunk head gasket + countersunk head hexagon socket screw, which has good fastening and decorative effects.
>> The instrument integrated cover at the front is easy to disassemble, and the later maintenance of electrical components and main valve is particularly convenient
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader
The whole system is equippedwith big brand changchai engine,stable performance, strong power.

One-piece molding, not easy tobreak,The oil pipe is on the insideof the boom.
Reinforced forearm design improves structure, disperses stress, stability and durability.
The new enlarged cab,new interior design,wideview, spacious and bright, humanized front rowgear mechanism, equipped with adjustable sus-pension seat;
All series are equipped with heating and coolingair-conditioning

Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader

Wear resistan,anto skid,better off-road performance,suitable for various working confitions.



The reinforced boom, stick and bucket design greatly increase the working range.




New integrated console for better operating comfortable.
All parts of walking have been strengthened as a whole, whichgreatly improves the reliability.

Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader

>> Certification
Model
Unit
XE150WB
Engine model
/
QSB4.5
Output power of engine
Kw/r/min
104/2000
Operating Weight
KG
14000
Max.torque/engine
N.m
586
Displacement
L
4.5
Fuel tank capacity
L
250
Rated flow of main pump
L/min
2x160
Pressure of main safety valve
Mpa
31.4/34.3
Hydraulic tank capacity
L
135
Slewing speed
r/min
12
Digging capacity of tcuket
KN
95
Digging capacity of tcuket rod
KN
72
Min.turning radius
mm
6500
Rated speed
KM/h
11/33
Gradient capability
%
70
Counterweight ground clearance
mm
1230
Min.ground clearance
mm
355
Min.tail swing radius
mm
2300
Wheelbase
mm
2800
Track gauge
mm
1920
Total width of chassis
mm
2495
Distance between front axle and turning center
mm
1700
Hood height
mm
2430
The maximum digging depth of dozer
mm
105
Max. digging radius
mm
7780
Min. swing radius
mm
7570
Max. digging height
mm
8190
Max. dumping height
mm
5855
Max. digging depth
mm
4630
Maximum depth cut for 2240mm(8 ft) level bottom
mm
4325
Max. vertical wall digging depth
mm
4150
>> Optional Accessories
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader>> Production Process
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader>> Package & Delivery
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader>> ServiceForest Excavator Loader Small Log Grapple Loader Small Excavator Loader


>> Pre-sale service

Acting as a good adviser, our well-trained sales groups and professional technical team propose most rational solutions for our valued client as per practical project requirement.

>> Select suitable model & matched equipment.

>> Strong technical support. Reply clients' questions within 24 hours.



>> Service During Sales

We have responsible team from raw material to finished products, and guarantee 100% pass rate.

>> Design and manufacture products basis of client's special requirement

>> Inspect each machine & matched accessories strictly before delivery

>> Timely inform client of production progress.



>> After Sales Service

We're always with you in after-sale service.

>> We can arrange related after-sales representatives for debugging and training at worksite when starting up.

>> E-mail, call or door-to-door service in later using.




Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader>> Overseas Project
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader
>> Exhibition
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader
>> About KAITIAN
Forest Excavator Loader Small Log Grapple Loader Small Excavator LoaderForest Excavator Loader Small Log Grapple Loader Small Excavator Loader
Beijing Jincheng Mining Technology Co.,Ltd(JCDRILL) provide users high quality Mining & Drilling solutions,we always focus on the strategic conception of "Survival by quality, Development by credit''.

We have specilized in research, development and produce of rock blasting drilling rig, water well drilling rig, diamond core drilling rig, anchor drilling rig, and relative accessories & drilling services. constantly provide professional drilling solutions for all customers with our advanced technology, excellent equipment, strict testing means and good service network,which establish our brand "JCDRILL" a good image of market, now,we products account for 50% of domestic market and have been export to more than 40 countries, and we awarded ISO9001: 2000 in November, 2002.

With excellent technology and solid market service capabilities, we have both a sound marketing system and excellent service support system, which help us win confidence of customers both at home and abroad,we can provide drilling rig users with high quality professional air compressor solution and relative after-sales service also.
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader >> Certification
Forest Excavator Loader Small Log Grapple Loader Small Excavator Loader

>> FAQ

Q: Are you original manufacturer?



Q: Which payment terms are available to us?

Q: Which Incoterms 2010 terms can we work?

A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole series products you need.

A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70%  balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.

A: We JCDRILL are a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.

Q: How long will the delivery time take? Q: How about after sales service?

Q:Spare Parts When You Need Them


A: Normally products will take about 3-15 days to produce the ordered machines. Most of the time, we can have an immediate delivery of our regular machines in 15 days.

A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."

A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare parts will be delivered within 72 hours or no more than one week.
