Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer

Looking for a high-quality hydraulic rear dump trailer? Our 3 axle 40 cubic meter tipper semi truck is perfect for farm tractors. Buy direct from the factory for the best deal.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • Detailed Photos
  • Company Profile
  • Packaging & Shipping
  • FAQ
Overview

Basic Info.

Model NO.
dump trailer
Load Capacity
80T
Certification
ECE, GCC, CE, ISO9001, CCC, ISO/TS16949
Wheel Base
7000-8000mm
Tread
1310
Grade
Heavy Duty
Types of Suspension Systems
Mechanical Suspension
Shape
Flatbed
Axle Number
3
Tire Number
12
Self-dumping
Self-dumping
ABS Anti-lock Braking System
Dual Lines Pneumatic Brake System
Material
Steel
Condition
New
Overall Dimension
9.8m*2.5m*3m
Tare Weight
8000kg
Pay Load
45ton
King Pin Setting
1220mm
Suspension
3 Axle Mechanical Suspension
Axle
Fuwa
Tires
Rim 8.0-20 or 8.5-20
Brakes
Dual Lines Pneumatic Brake System
Main Beam
I Shape
Cross Beam
Mild Alloy Q235
King Pin
50# (2′′) or 90#(3.5’’)
Steel Sheet
Floor Thickness 8mm, Side Wall Thickness 6mm
Transport Package
Nude
Specification
9.8m*2.5m*3m
Trademark
JIANXING
Origin
China Jinan
Production Capacity
1500 Pieces/Year

Packaging & Delivery

Package Size
980.00cm * 250.00cm * 300.00cm
Package Gross Weight
8800.000kg

Product Description


Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer

Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer
Product Description
MAIN DESCRIPTION
Overall Dimension 9.8m*2.5m*3m(L*W*H)
Tare Weight 8000kg
Pay Load 45ton
King Pin Setting 1220mm
RUNNING GEAR
Suspension 3 axle mechanical suspension with 11-pcs leaf spring
Axle AQ,FUWA, BPW or STEYR axle, load capacity 13ton
Rims & Tires Rim 8.0-20 or 8.5-20, tire 11.00-20 or 12.00-20
Brakes Dual lines pneumatic brake system, WABCO Emergency Relay Valve; T30/30+T30 air chamber; parking brake
UNDER FRAME
Main Beam I shape, Mild Alloy (16Mn) by Automatic submerged arc welding.
Cross Beam Mild Alloy Q235
King Pin Welded kingpin, size 50# (2'') or 90#(3.5'')
Landing Gear Double sides operation, Static capacity 30Ton
CARGO BODY
Inside Dimension 9.3m*2.3m*1.5m(L*W*H)
Steel sheet Floor thickness 8mm, side wall thickness 6mm
Hydraulic Jack Full set of HYVA hydraulic system, front setting telescopic jack
Tailgate One-piece tailgate with upper articulation, safety lock system
ELECTRICAL & PAINT
Lights & Reflectors Rear light, rear reflector, turn indicative light, side reflector, fog lamp, number plate light
Wiring 24V, 6 lines
Air/Elec. Connector ISO standard air connector, 24V 7 pin plug socket
Paint Sand blasting before painting, color upon request

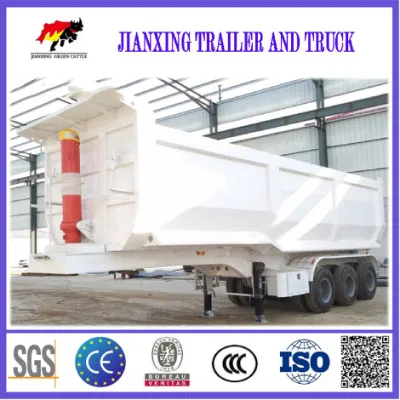

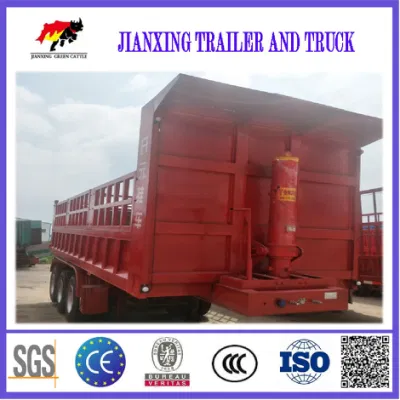

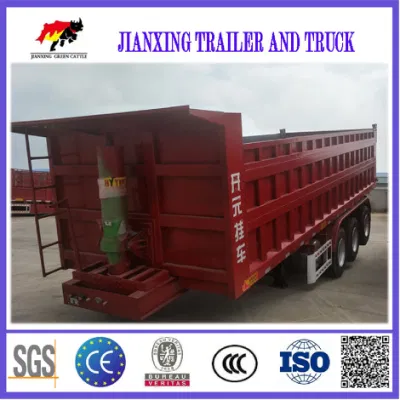

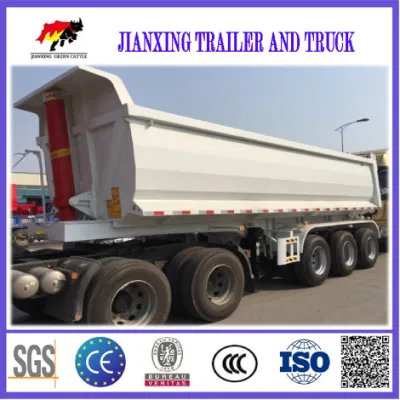

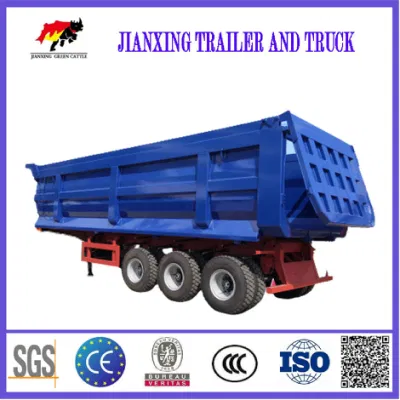

Detailed Photos

Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full TrailerHydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer

Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer
Company Profile

Jianxing Green Cattle International (Shandong) Co., Ltd. was established in 2021 in Jinan by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. Our company is located in Wanda Plaza in the Jingsi Road in the center of Jinan City. At present ,the company mainly sells container flat semi trailer, container transport vehicle, semi dump truck, various series semi trailer,full trailer, van, car transport vehicle manufactured by Shandong Yuncheng Jianxing Special Vehicle Manufacturing Co., Ltd. There are more than 40 kinds of products and the weight of vehicles from 8 to 120 tons. In addition, Jianxing Green Cattle International (Shandong) Co., Ltd. to undertake special vehicle modification design business. The company' s products are exported to all over the world, such as southeast Asia, Central Asia, the Middle East, Africa and so on.
Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer
Our company is led by a professional manager who has been in the same industry for more than 10 years. So we have a perfect training mechanism, perfect foreign trade process, reasonable risk aversion rules, rich foreign trade business experience. The company' s philosophy is concentric share with win-win, greatful for you and the service attitude is every trust must not be disappointed. Welcome partners from all over the world to visit and negotiate business
Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer
Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer
Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer


Packaging & Shipping

Hydraulic Rear Dump Trailer 3 Axles 40 Cubic Meter Tipper Semi Truck High Quality Tipper/Dump Trailer with Draw Bar Farm Tractor Full Trailer

FAQ

1.What's your advantage?
A: Honest business with competitive price and professional service on export process.
2. How I believe you?
A : We consider honest as the life of our company, we can tell you the contact information of our some other clients for you to check our credit. Besides, there is trade assurance from Alibaba, your order and money will be well guaranteed.
3.Can you give warranty of your products?
A: Yes, we extend a 100% satisfaction guarantee on all items. Please feel free to feedback immediately if you are not pleased with our quality or service.
4.Where are you? Can I visit you?
A: Sure,welcome to you visit our factory at any time.
5.How about the delivery time?
A: Within 15-35 days after we confirm you requirement.
6.what kind of payment does your company support?
A: T/T, 100% L/C at sight, Cash, Western Union are all accepted if you have other payment,please contact me.
