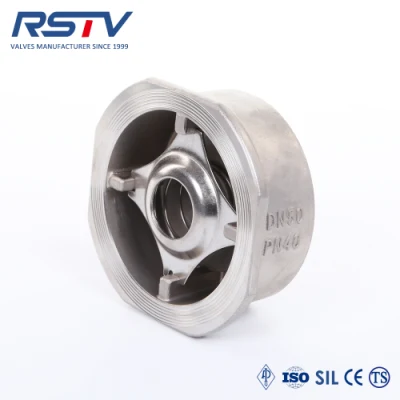

Industrial Stainless Steel Wafer Check Valve (H71)

We are a factory specializing in the production of industrial stainless steel wafer check valves (H71). Our high-quality valves are designed for durability and reliability.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
H71W
Function
Non-Return
Sealing Form
Self Sealing
Flow Direction
Unidirection
Standard
DIN
Application
Industrial Usage, Water Industrial Usage, Household Usage
Material1
CF8m/CF8/Wcb
Type
Wafer/Single Swing/ Dual Plate, etc
Certificate
CE/ISO/API/Sil/Ts
OEM
Available
Transport Package
Plywood Case
Specification
1/2"-12"
Trademark
RST/OEM
Origin
China
HS Code
8481300000
Production Capacity
6000tons/Year

Product Description

Industrial Stainless Steel Wafer Check Valve ( H71 )
  • RST Valve company is a industry valves manufacturer, including Thread & Flange Ball Valves, Gate Valves, Globe Valves, Check Valves, Y Strainers in stainless steel, carbon steel, cast steel, forged steel and alloy steel.
  • Check Valves mainly has Thread ends Swing Check Valve, Stainless Steel Vertical type Check Valve, Screwed ends CF8M 200PSI Y type Check Valve, Stainless Steel Wafer type Check Valve, Single Disc Wafer type Check Valve, Single plate Lift type Wafer Check Valve, Dual Plate Wafer Type Check Valve, Cast Steel Flange ends Swing Check Valve, Stainless Steel Flange ends Lift type Check Valve, API Flange ends 150LB Swing Check Valve, DIN Standard Lift type Flange Check Valve.
  • Wafer Check Valves are available Solid Body, H-Body and Extended Body Designs in sizes up to 30". Body materials include Carbon Steel, 316 Stainless Steel, Cast Iron, Brass and Aluminum. Available elastomers include Buna N, EPDM, Viton, Silicon and PTFE. Valve internal components can be customized to fit your exact application requirements.
  • Full Port, Lowest Pressure Drop. Full Port Wafer Check Valves provide more flow and lower pressure drops than conventional check valves. Our elastomer hinge check valve design takes performance to an entirely new level by eliminating the restrictive valve seat and substantially increasing the valve's open area and flow coefficient (Cv). They are ideal for application in vacuum pumps, compressed air and gas systems as well as in water systems where low head loss and elimination of water hammer are desirable.

Specifications:

Product Name Industrial Stainless Steel Wafer Check Valve ( H71 )
1. Material SS304/316/304L/316L ( CF8/CF8M/CF3/CF3M), WCB, WCC, LCB,LCC,WC6,WC9, C5,C12, etc
2. Size 2''~24'' ( DN50~DN600)
3. Thread standard ISO9001 & CE, TS
4. Type Wafer Type
5. Working Pressure 150LB/300LB/600LB/900LB/1500LB
6. Applicable standard API 594, API 6D, standards
7. Working Temp. -29~425ºC, or according to customer requirements for different industry.
8. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
9. Inspection & Testing According to API598/DIN3230
Shipment
Delivery Time 15~20 Days
Package Standard Exporting Plywood Case
Shipping Port Ningbo/Shanghai, China
Shipping Terms Exw, FOB, CFR, CIF, etc.
Payment Terms T/T, Western Union, PayPal, etc.
  30% prepayment, 70% balance paid before shipping or against copy of BL
Country of Origin Wenzhou city, China
Production Capacity 6000 ton/year
MOQ 10 PCS/size

Features:

1. Light weight,versatile design- 80% to 90% less than  conventional full-body swing  check valves
  • Simplifies piping
  • Reduces thermal and seismic considerations
  • Optimizes space utilization
  • Lowers installation costs
  • Reduces pipe supports
  • Requires less number of man-hours
2. Single Disc opening
  • Unobstructed flow
  • Stable disc at lower flow velocities
3. Single integrated arm/disc  assembly  Spring-loaded disc calculated  to increase the responsiveness  of the disc
  • No shearing of disc from arm
  • Non-rotating disc for longer life
  • No nut to back-off disc stem
4. Elastomer o-ring seat secured  in body with dove-tail groove
  • Alleviates water hammer and resultant damaging effects
5. Integrated body seat
  • Field replaceable seat
  • Seat is out of the direct flow stream
6. Non-blow out shaft design
  • Improved safety to personnel and surrounding equipment
7. Outside mounted accessories  externally supported
  • Increased control of valve performance
  • Long body seal life
  • Enhanced fugitive emissions control

Industrial Stainless Steel Wafer Check Valve (H71)
Industrial Stainless Steel Wafer Check Valve (H71)



Competitive Advantages:

  • Our products is guaranteed within 18 months after delivery.
  • We offer free sample if interest before orders.
  • Technology renovation, process improvement, structure optimization and quality improvement.
  • Excellent after-sales service system, providing timely and optimal service, which help you to win the market.
  • Convenient shipping sea port, and standard exporting carton boxes & plywood cases.
  • 100% inspection & testing before delivery.
  • Third party inspection on customer requirement.

Material List:

No. Part Name Material
1 Body ASTM  A216 WCB/A351 CF8M
2 Disc A216 WCB /A351 CF8M
3 Star A351 CF8/A351 CF8M
4 Spring AISI 304/AISI 316
5 Circlip AISI 304/ AISI 316
6 Body seat Cladded 13Cr/Metal to Metal/Viton/Buna-A soft seat


Industrial Stainless Steel Wafer Check Valve (H71) Industrial Stainless Steel Wafer Check Valve (H71)





 RFQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 10-15 days if the goods are in stock. or it is 30 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
