12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester

Our factory produces high-quality 12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester. Contact us for reliable solutions.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Type
Protection Fittings
Finish
Hot DIP Galvanized ASTM A153
Material
Porcelain Insulator
Shape
Circle
Usaga
High Voltage
Accessories
NEMA Bracket, Fuse Link, Arc Shortening Rod
Rated Voltage
10-15kv
Rated Current
100A, 200A
Application
Distribution Line
Function
Over-Current Protection
Code No.
C710-211pb
Transport Package
Carton, Pallet
Specification
15KV, 100 AMP
Trademark
RE
Origin
Yueqing, Zhejiang, China
HS Code
8546909000
Production Capacity
10000 Pieces Per Month

Product Description

12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/ArresterConditions of Use
Ambient temperature: Not higher than +40 º C, not less than -30 º C
Altitude: Not exceed 1000m (1000m above can be corrected GB311.1-1997)
Power frequency: 50 ± 2Hz
Earthquake intensity: 7 degrees below
Maximum wind speed: 35m/s

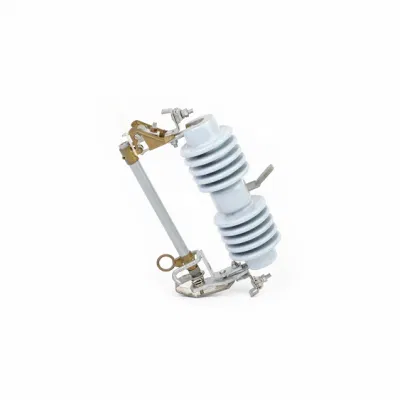

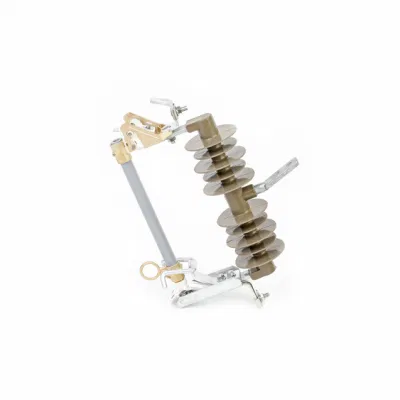

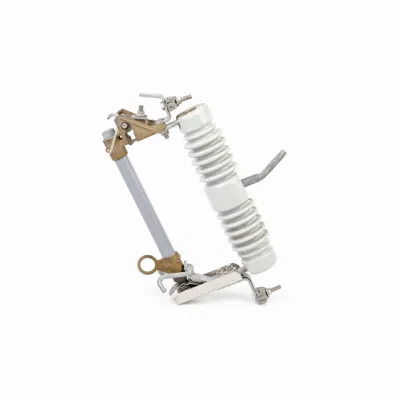

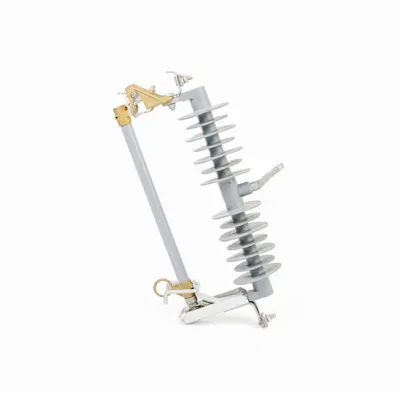

FSC-1 medium voltage overhead line overload protection porcelain dropout fuse cut out12kv Outdoor Vacuum Circuit Breaker Spring Operating Mechanism with Isolated External CT/PT/Arrester
Technical Specifications
Type  Rated Voltage
(KV)
Rated Current
       (A)
Breaking Current
(A)
Impulse Voltage
(BIL)
Power-frequency withstand voltage
(KV)
Leakage Distance
        (MM)
FSC-1     15     100     10000   110     40       220
    15     200     20000   110     40       220
Accessories Nema Bracket,fuse link,arc-shortening rod (Can be provided as customer's request.)
Main material Wet process porcelain,copper,brass,stainless steel,hot dip galvanized steel
      -------------------------------------------------------------------------------------------------------------------------
Company Information

  We are the manufacturer with 20 years experience of  galvanized steel overhead line fittings.

 Yueqing Reacon Electric Power Fitting Co.,Ltd. has been engaged in and making in producing electric power fittings and pole line accessories more than 20 years, and has got the certificate of International Quality System ISO9001.

 Our company has products of all specifications and its major products are overhead insulator fittings, poleline accessories, power line fittings, porcelain insulators and so on. The company has a strong technological power, top-ranking production.

-----------------------------------------------------------------------------------------------------------------------------------
Our Services
1. Rich experience in ODM  and OEM
2. Excellent One-stop service
3. High Quality Precision Customized forging & Casting services
4. The lowest price
5. Strict quality control
6 We can manufacture it according to customers requirements.

-------------------------------------------------------------------------------------------------------------------------
 FAQ:

Q1: How is the Design & Engineering
 A: Experienced and skilled team of designers including CAD designers and 3D designers has the capacity to deliver outstanding designs for your project.
     If you require more complex engineering of structures such as overhead transmission and distribution lines design,we can also provide this service also designer fee.

Q2: What's the payment term?
 A: We accept T/T, L/C, West Union, Cash.

Q3: What's the delivery time?
 A: Usually 2-4 weeks. Or according to quantities

Q4: What's the standard of package?
 A: Export standard package or special package as the requirement of customers.

Q5: What kind of product quality your factory offer?
 A: Our products with both excellent quality and competitive price. And we offer free sample for your reference.

Q6: Where is your mainly market?
  A: We mainly ship to South America, North America, Africa , Asia, etc.

Q7: What kind of certificate you have?
 A: We have ISO9000, DAS

-----------------------------------------------------------------------------------------------------------------
