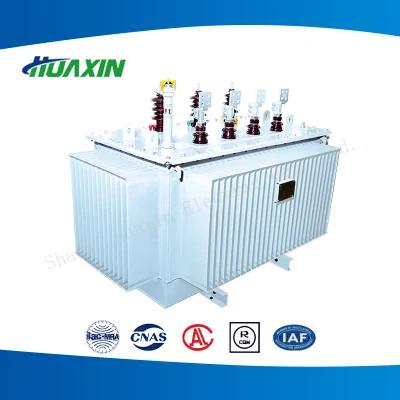

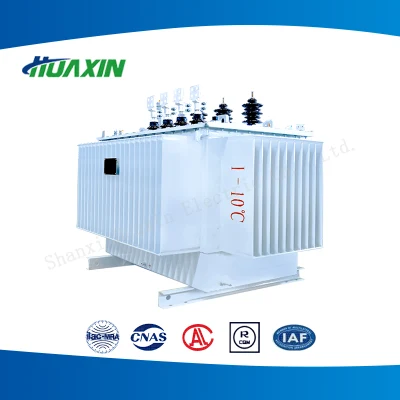

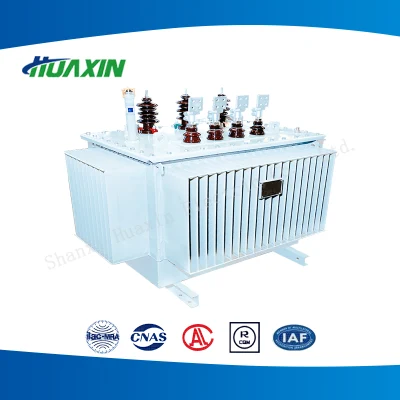

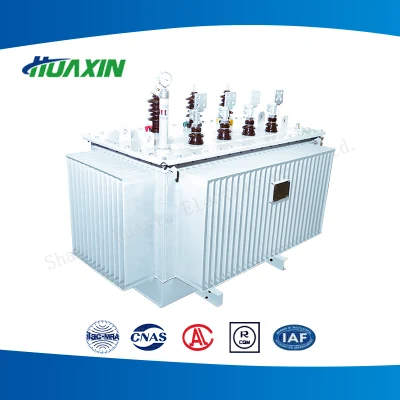

Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15

Welcome to our factory! We specialize in the production of Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformers of Sbh15. Find high-quality, energy-efficient transformers for your power distribution needs.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
SBH15 Oil-Impregnated Amorphous Alloy Transformer
Brand
OEM
Specification
Capacity: 30-2500kVA
Trademark
OEM
Origin
China

Product Description


PRODUCT INTRODUCTION

PRODUCT ADVANTAGES

As a new energy-saving technology, amorphous alloy transformer energy-saving performance is mainly derived from the use of a new type of iron-based amorphous alloy with excellent soft magnetic properties.  Amorphous alloy core transformer is a kind of transformer made of new magnetic conducting material-amorphous alloy. Its free load loss(refers to power loss measured on primary when the transformer secondary is in open-circuit) is about 80% less than transformer with silicon steel sheet as core and the free load current (when the transformer secondary is in open-circuit, there is still a certain primary current which is called free load current) decreases about 85%.


PERFORMANCE CHARACTERISTICS

1. Ultra-low loss characteristics, energy-saving and high power efficiency;

2. The low energy cost and ultra-low loss characteristics in the manufacture of amorphous metal materials can greatly save the power consumption and reduce the power output of power plants, relatively reduce the emission of C02 and S02 waste gas and reduce the environmental pollution and greenhouse effect, it is maintenance-free and pollution-free;

3. Low operating temperature, slow insulation aging and long service life of transformer;

4. High overload capacity and high mechanical strength;

5. The amorphous core still has the characteristics of low iron loss and low excitation current when it passes through high frequency magnetic flux without the saturation of the core, therefore, the SCRBH15 type amorphous alloy transformer made of amorphous core has good harmonic resistance;

6. Investment returns quickly.




TECHNICAL PARAMETER

1. Rated capacity: 30-2500kVA
2. Rated voltage: Primary voltage: 10kV, 6KV; Secondary voltage: 0.4 kV and other
3. Rated frequency: 50Hz
4. Phase number: Three-phase
5. Cooling method: AN0N
6. Temperature resistance grade of insulation materials: Class A
7. Technical performance data and insulation level is shown in Table 1 and 2



Table 1 The primary rated voltage is grade 6kV, 10kV amorphous alloy transformer performance

Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15

Table 2 Insulation Level

Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15


PRODUCT SIZE


Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15



APPLICATION AREA


It is an ideal distribution transformer with energy-saving effect which is especially suitable for rural power grid and developing area where the distribution utilization ratio is low. It is widely used in factories, mines, parks, residential districts, stations, wharfs, urban and rural areas, rural power grid transformation, wind power plants, oil field mining and other places, which is the most ideal replacement of old type super-energy transformer.





COMPANY PROFILE

ABOUT US

Shanxi Huaxin Electric Co., Ltd. is located in Yangquan, the largest anthracite base in China. Founded in May 2003, the company's registered capital was RMB 114 million, with total assets of RMB 815 million and the existing staff of over 1100. At present, our company has six industrial parks, divided into Changling Industrial Park, Four Mining Industrial Park, Lock Spring Industrial Park, Taiyuan Industrial Park, Jinnan Remanufacturing Park, and Jindong Remanufacturing Park, covering a total area of over 650 acres.


Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15
Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15
Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15
Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15


Our company has more than 30 patents now, mainly engaged in the R&D and production of intelligent electric automation, intelligent transportation and lifting, intelligent warehousing, power system, ventilation fluid and other series of over 80 products.

Our company has registered five R&D institutions in Beijing, Shenyang, Shanghai and Taiyuan, laying a solid foundation for technical upgrading and renewing generation for products.  And it has been responsible for the production of the high-efficiency, energy-saving core technology products required by the national Eleventh Five-year plan, and the research and  development of the high-efficiency permanent magnet motor and frequency conversion control,  the key projects of national energy-saving for the Twelfth Five-year plan.




CERTIFICATIONS

Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15
Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15
Low-Loss Three-Phase Oil-Impregnated Amorphous Alloy Voltage Distribution Power Transformer of Sbh15



AWARDS

1.High-tech Enterprise, Provincial Technology Center
2.Two-phase Fusion Demonstration Enterprises
3.China Quality and Integrity Enterprise
4.Shanxi Top 100 Enterprises
5.Shanxi Top 100 Manufacturing Enterprises
6.Following Contract and Observing Credit Enterprise
7.Shanxi Quality and Reputation AAA-Class Enterprise
8.Small and Medium-sized Enterprises of Science and Technology
9.Technology Center of Shanxi Small and Medium-sized Enterprises
10.ISO9001 Quality Management System
11.ISO14001 Environmental Management System
12.ISO18001 Occupational Health and Safety Management System
13.National Torch Program
14.Golden Bridge Award of China Technical Market
15.Measurement Guarantee Unit




ACHIEVEMENTS

1.The first production enterprise in rare earth flameproof permanent magnet motor and flameproof flat coil core transformer for mining.
2.One of the country's three major mining transformation production bases, and the largest coal machine equipment manufacturing enterprise in Shanxi province.
3.The permanent magnet direct drive motor and frequency conversion control produced by our company, have put into use in Zhengzhou Coal Industry Group, Shanxi Coal and Chemical Industry Group, Yangquan Coal Industry Group and other major coal industry groups.
4.Distribution transformer products have been successfully shortlisted as qualified suppliers for National Power Grid and China Southern Power Grid.



ATTENTION

1.The payment term: We accept TT, 30% deposit and 70% balance against copy of BL.
2. The delivery time: Usually it will take about 3 months.
3. The standard of package: Usually use strong plywood case for protection.
4. Warranty: In 12 months since BL date.




SERVICE

1. Reply within 24 hours.
2. Perfect service commitment.
3. Provide services during the pre-sales, in-sales and after-sales, all the way (Including quality warranty).
4. Be free of charge in training and tutoring after sales.
