Overview

Basic Info.

Model NO.
DX68
Crimping Range
1/4" to 2"
Crimping Force
450 Ton
Ruler Precision
0.01mm
Oil Pump Displacement
2.5ml/Rad 220V 5ml/Rad 380V
Power&Voltage
3kw 220V&380V
Dimension
670*430*950mm
Weight
260kg
Payment
T/T, L/C or as Buyer Required
Transport Package
Wooden Case or as Buyer Required
Specification
670*430*950mm
Trademark
DX68
Origin
Tianjin, China
HS Code
8462919000
Production Capacity
100000 Sets Per Month

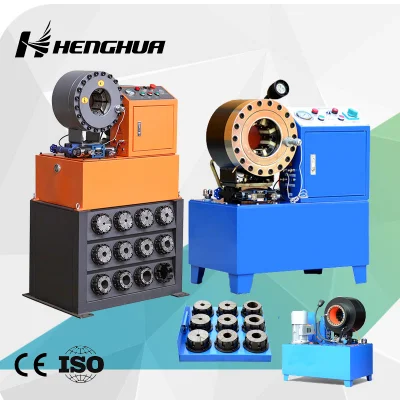

Product Description

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight
Product Parameter
Model DX68 DX76 DX102 DX150
Crimping range

6~51mm(1/4" ~2")

6~76mm( 1/4~3" )

6~102m( 1/4~4" )

6-150mm(1/4~6")

Max crimping Force 449T 500T 1400T 2500T
Rated Pressure 31.5MPa 50Mpa 31.5Mpa 31.5Mpa
Weight 250kg 300kg 520kg 900kg
Mold Quantity 10 sets 13Sets 16Sets 17Sets
Power 3KW/4KW  4KW 4KW/5.5KW/7.5KW 4KW/5.5KW/7.5KW
Voltage 220V/380V 240V / 380V 380V or customized 380V or customized
Scale accuracy 0.01mm 0.01mm 0.01mm 0.01mm
Overall dimensions 670*490*780mm 730*470*930mm 900*790*1070mm 1030*630* 1160mm
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Brief Introduction
Model DX68 pipe locking machine is mainly used for buckling processing for high pressure rubber pipe assembly in the mechanical engineering. It can also be used for buckling the two-way bends, especially large bends and irregular shape bends.
This machine features small and portable appearance, big force, low noise and easy to oper- ate. The buckling amount can be precise adjusted through a scale. It makes the mould base division to be more even through the double inclined plane eight-flap mould seat equipped with a high accuracy guiding device.

Main Technical Feature
Buckling range: Φ4mm-Φ51mm(2 layers steel wire rubber hose) Max. buckling force: 449T
Scale accuracy: 0.02mm Rated pressure: 31.5 MPa
Oil pump displacement: 5ml/rad (380V); 2.5ml/rad (220V) Overall dimensions: 670(L)×490(W)×780(H)mm
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight


Main Technical Feature
1.Efficient, fast pump
2. dies can be changed quickly by QC tool
3. Die set rack,space saving.
4. Precision control device,equipped with signal lamp
5. automatic&semi-auto&button& foot pedal control operated
6.The height of the machine is just right for standing operation



>>Any color can be customized.

>>Machine parts can specify the brand requiryed by customers, such as Famous brand motors.
>>Can customize customer's own logo and machine OEM.

>>Molds can be customized in different models.



Promise
We will provide a guarantee to keep the machine in good repair within 12 months from the day when the machine is purchased. All fitting troubles will be free of charge repaired (or replaced if necessary) during the guarantee period. The damage resulted from improper use o accident damage does not belong to free of charge repair range.
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

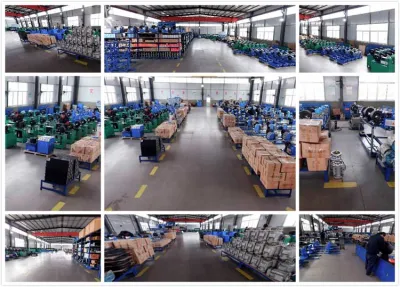

Our Factory

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Installation and Operation


1.Add sufficiently 79 liters of Great Wall brand 46# anti-abrasion hydraulic oil. If the room tem- perature is lower than 10ºC, 10% transformer oil is need to add.
Connect the electric source well as per the machine requirements, to make the direction of the motor rotation to be consistent with the rotation direction marking, and grounding protection shall be done.

2.Regulating the scale
The scale is used for regulating the amount of the buckling. When it is regulated clockwise, the buckling amount will decrease, when it is regulated anticlockwise, the buckling amount will increase. The scale is connected together with oil cylinder end cover through three socket head screws and three springs on the scale base. When using a hand to pull the scale (vertical to the oil cylinder end cover direction), the scale can flexibly leave from the oil cylinder end cover. When releasing the scale, the scale will be recovered relying on spring force. Before the machine is turned on, inspect carefully if the scale telescoping is flexible and if the lead con- nection is reliable.

3.The primary scale is turned within 0 line of the secondary scale, turn the machine on for test run, and observe if all actions are normal. If when the piston conducts reciprocating move- ment, there is a crawling phenomenon, the bleed screw on the oil cylinder top shall be unscrewed for exhausting air.

4.Pressure regulation
The buckling pressure and opening mould pressure will be regulated through two knobs at the back of the oil cylinder (see figure), when it is regulated clockwise, the pressure will increase, when it is regulated anticlockwise, the pressure will decrease (The pressure has already been well regulated when ex-factory).

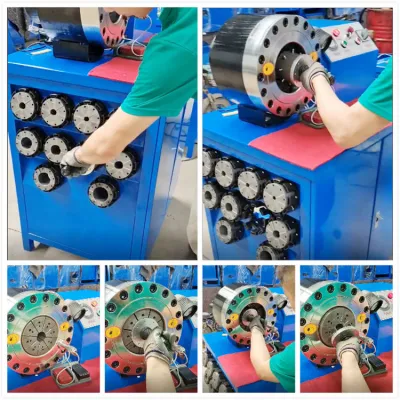

5.Operation
Based on the size of the rubber hose to be buckled, select suitable mould as per the technical parameter reference table of the locking pipe and mount it on the mould base. Regulated well the scale position as per the data in the data in the table, the pipe locking can be done. After pipe locking, use a vernier caliper to mease the outside diameter dimension of the pipe sleeve after buckling to see if it meets the reference table data of the parameter. If it does not meet the data, the scale shall be precisely regulated until it meets the requirements. Because the manufactures of the pipe sleeve are different, so, specific dimension, material, hardness etc are certainly not the same. These factors would result different influences on the pipe locking result, therefore, the data in the table is only for reference, the detailed data take the pressure test as the basis.
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Our Clients
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Packaging & Delivery

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

Relatived Rubber Hose Making Machinery Products

1.Hose Cutting Machine

2.Hose SKiving Machine

3.Rubber Hose,Hose assembly

4. Ferrule, Hose Fittings, Flange, Adapter,Clamp,etc
Popular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor FreightPopular Design Automotive 230V Electric 18V Braided Hydraulic Brake Hose Crimper Harbor Freight

FAQ:

 1. What level of service do you provide ?

*Your inquiry will be replied in 24 hours.

*Eight continuous years as an Alibaba Gold supplier and more than 25 years industrial technology and manufacturing experience .

* We offer free spare parts and service within 14 month warranty period.

* Technology Support by providing operation training videos .

* Professional after-sales service team.

* Give reasonable offers with the best quality.

2. What is our advantages?

* Competitive price: We can meet your budget and best-selling business very well.

* OEM Accepted: We can produce customized design.

* Good Service: We treat clients as friends and provide problem solving anytime you need.

* Good Quality: We have strict quality control system. Good reputation in the market.

* Fast & Delivery: We have big discount from forwarder (Long-term Contract).

* Door To Door Service.

3.  Can you customize the machine for the customer?

Yes. We can, we also provide OEM for customers; If you need customized services, please contact us

4.  What is the MOQ?

We usually provide 1 set for customers to test.
