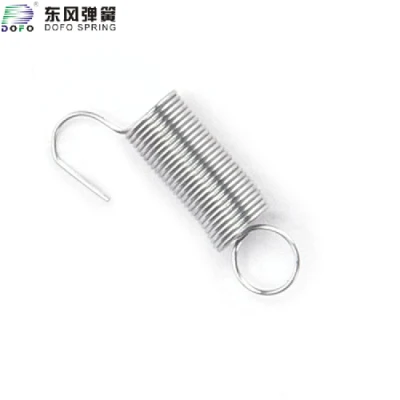

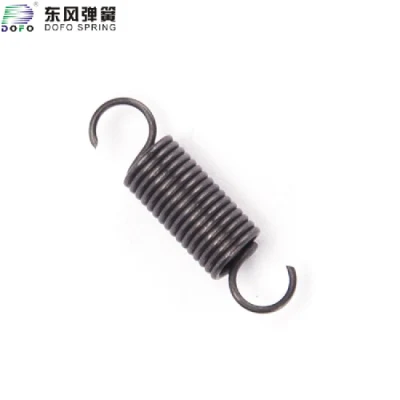

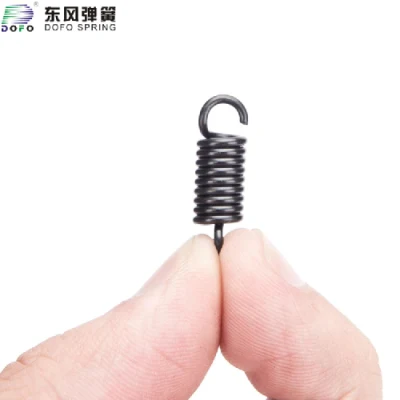

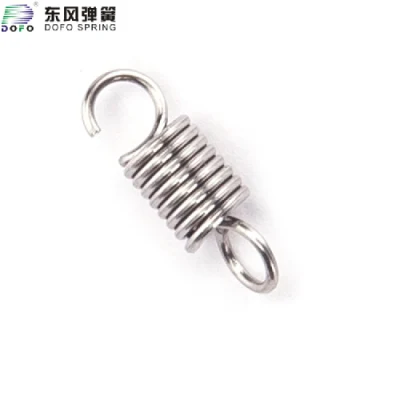

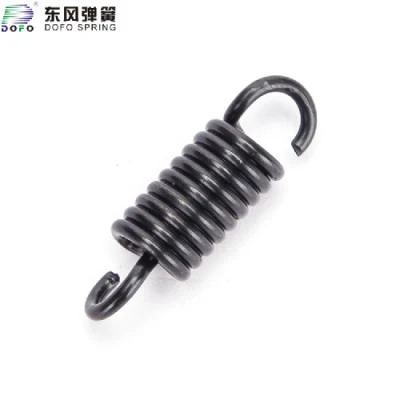

Stainless Steel Hand Gripper Extension Spring Manufacturers

Find high-quality stainless steel hand gripper extension springs at competitive prices from our factory. We are leading manufacturers in the industry.
Request a Quote

PRODUCTS DETAILS

  • Overview
  • Product Description
  • FAQ
  • Company Profile
  • Our Advantages
  • Certifications
Overview

Basic Info.

Model NO.
DF2102454
Load Type
Extension
Production Process
Cold Roll
Shape
Coil
Product Name
Hand Gripper Extension Spring
Business Mode
Factory OEM
Material Standard
GB 4357-09 or Equivalent
Wire Range
From Min 0.1mm(0.004inch) to Max 12mm(0.48inch)
Winding Direction
Left and Right
End Type
Different Hooks Available
Surface Treatment
Washing
Coating Thickness
8~10 Micrometer
Testing Method
Random Sample Inspection
Tolerance
GB Standard, Grade II or as Per Your Requirement
Spring Rate Tolerance
+-3%~10%
Aql Level
Aql 1.0
Packing Method
OPP Bags with Blank Carton
Normal Carton Size
23X23X31/Cm with No Mark
Certificate
ISO9001, SGS, RoHS, CE, Ts16949
Transport Package
Carton and Outer Wooden Case
Specification
customized
Trademark
DOFO
Origin
Wenzhou, China
HS Code
7320909000
Production Capacity
1, 000, 000 Pieces Per Month

Packaging & Delivery

Package Size
1.00cm * 1.00cm * 1.00cm
Package Gross Weight
1.000kg

Product Description

Product Description

stainless steel hand gripper extension spring manufacturers

Extension Handles and Stainless Steel Spiral Spring, Hand gripper, hand Strength Fitness Adjustable Resistance Ideal for Sports Gym Jogging Running Riding Bike Cycling Dancing Moving Musicians Physiotherapy, etc. Supplied with 2 Free Tube of 30 - 145lb Design

#1 ATTN: Read This Before Buying

A. Due to the internet and computer display solutions. The actual products may differ from
the pictures. Please contact our salesmen for further assistance.
B. All the extension springs, compression springs, torsion springs, wire forms can be made in customized demands.
C. We appreciate Drawing-Guide Production, Please send us a spring drawing as possible as you can when you inquiry.
D. We appreciate your inquiries and you are welcome all the time!

For a better understanding of your demand, please learn the basics of extension spring manufacturing.

#2 Working Drawing of an Extension spring
Stainless Steel Hand Gripper Extension Spring Manufacturers

#3 Different Hook End Types of Helical Extension Springs
Various types of ends are used to attach the extension spring to the source of the force.  They include hooks or eyes at varying positions or distances from the body of the spring, reduced and expanded eyes on the side or in the center of the spring, extended loops, threaded inserts, and even rectangular or teardrop-shaped ends. By far the most common is the machine loop and crossover loop. These ends are made with standard tools in one operation and should be specified when possible to minimize cost.
Stainless Steel Hand Gripper Extension Spring Manufacturers


Unlike compression springs, extension springs do not have a solid stop to prevent overloading. Because of this design stress levels are lower for extension springs than for compression. A special type of extension spring called a drawbar spring has a solid stop and is a type of compression spring with special hooks.

One thing you must be very aware of when it comes to your high tension springs, though, is the initial tension it exerts. This has as much to do with your tension spring design as your spring's rate does because it will also affect your spring's working loads.

#4 Available Coating Method
Due to the government's environment policy, all the coating materials are prior to RoHS standards. Please take RoHS standard coating as possible as you can. Below is a table for reference, you can simply learn the cost of each coating method.
Coating Method Cost Does it Meet the RoHS requirement? Remark
Unplated None Yes
Anti Rust Oil Lowest Yes
Black Oxide/Oxide Lower Yes
Normal Zinc coating normal No
Trivalent Zinc coating High Yes Normally 8~10μ thickness, 48 hours without white rust
Nickel Plated normal Yes
Electrophoresis Higher Yes
Painting Very High Yes require a longer delivery time
Stainless steel Washing normal Yes
Stainless Steel Electro-polish Highest Yes This coating cost more than the others


FAQ
DOFO Spring provides a win-win service. Below we list answers to some of the questions our customers frequently asked. For anything unsure, please contact us, and we will respond within 12 hours.

Q: Which kind of materials are available? Do they meet RoHS certification?
A: DoFo Spring is able to manufacture different spring types of compression springs, extension springs, torsion springs, wire forms with a large range of High-Grade Spring Steel - Carbon steel - Stainless steel - Music Wire, all comply to the RoHS standard. The wire diameter is available from 0.001 inches to 0.075 inches, which can meet the requirement of different applications.

Q: Do you support orders in small quantity or do you only accept large runs?
A: DoFo Spring manufactures large quantity springs, small quantity springs based on your demand.  We will work with you to choose the most effective solution.

Q: Does DOFO spring offer DESIGN service OR initial ASSISTANCE ON SPRINGS?
A: Our engineers could give initial assistance on the design and advise to lower the production cost. Our engineer has years of experience in spring design. We could provide drawing format in CAD, 3D, and 2D design layout as well as prototype development.

Q: What is the typical lead time for custom springs?
A: The lead time varies in custom springs. For compression springs, extension springs, torsion springs, wire forms in our mold range, we are able to deliver within 25 days. However, for some complex shapes of springs, the delivery time would be around 30~40 days.

Q: Do you charge custom spring samples?
A: We make the custom springs sample charge as a subscription of formal order. In other words, the sample charge could be refunded when we receive the order. However, if your sample requires an additional mold, we will charge it.

Q: If we order large quantity springs, will you house the springs, wire forms, and ship to us based on a required basis?
A: Our warehouse provides specific stock service for long term business. You can make your shipment schedule on an annual, monthly basis. We will ship on a specific schedule.

Q: What payment term do we accept for spring orders?
A: We could accept payment terms based on T/T, L/C at sight, DP, Westunion.
