Overview

Basic Info.

Model NO.
FV32
Function
Ddcv Double Lobe
Sealing Form
Bellows Globe Valve
Flow Direction
Reversing
Standard
DIN
Application
Water Industrial Usage
Other Name 1
Check Valve Lever with Counterweight
Other Name 2
Air Cushioned Cylinder Swing Check Valve
Other Name 3
Bottom Mounted Buffer Swing Check Valve
Transportation
Shipping, Air Freight, Courier to Door
Export Markets
Global
Warranty Period
1 Year
Custom
Accept
Transport Package
Wooden Cases or Carton
Specification
DN50-DN750
Trademark
Flow Valve
Origin
Shanghai
HS Code
84219990
Production Capacity
2000PCS/Month

Product Description

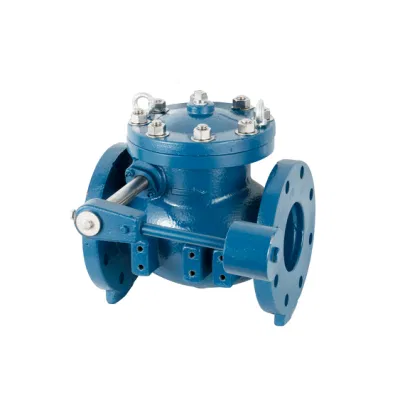

Swing Check Valves with Lever Arm and Weight

Swing Check Valves with Lever Arm and Weight

Product Description

Check valve is an automatic valve, which is also called inverted valve or back valve.

It relies on the flow of the medium itself to automatically open and close the disc to prevent the backflow of the medium.

ln order to avoid any accidents the medium is limited for one-way flow.

Check valves are mainly divided into the following types according to their structure: swing check valve, lifting check valve and butterfly plate check valve.

Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight



Specification


NO


Name


Material
Chinese Spec ASTM Spec
1 Cover QT450-10 A536 65-45-12
2 Body QT450-10 A536 65-45-12
3 Seat 0CrNi18 ASTM A276 304
4 Shaft 1Cr13 ASTM 410
5 Cylinder Aluminum ASTM 6061
Swing Check Valves with Lever Arm and Weight
Nominal Diameter: DN50-DN750, 2'--40'

Nominal Pressure: Class150/PN16

Flanged End Standard: ANSI B16.1,EN1092-2,GB/T17241.6

Working Temperature: -20ºC- 120ºC



NPS 2 1/2 3 4 5 6 8 10 12 14 16 18 20 24 28 30 40
DN 65 80 100 125 150 200 250 300 350 400 450 500 600 700 750 1000
L 216 241 292 330 356 495 622 698 787 914 1016 1016 1295 1448 1524 2250
Kv - 10 22 - 51 100 136 207 278 349 457 564 786 - 1285 -
Cv - 12 26 - 59 117 158 242 325 408 533 658 917 - 1500 -



Advantages

1, Automatic open and close under the medium pressure inside the pipe. It is a kind of automatic valve.

2, Prevent medium backflow, one direction flow.

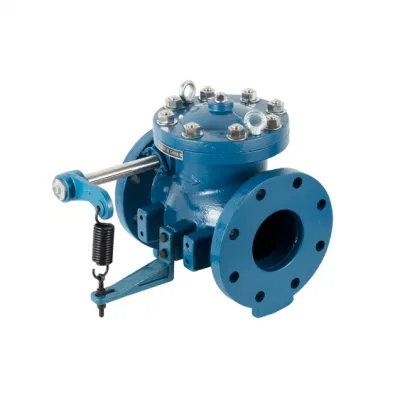

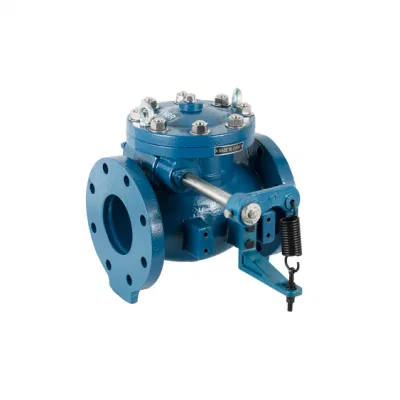

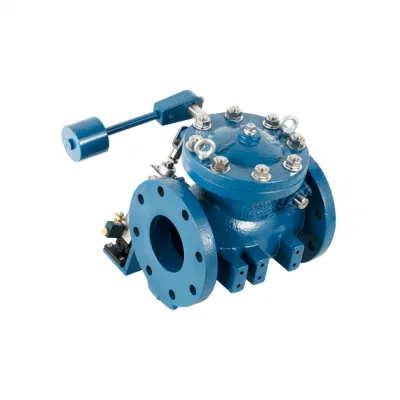

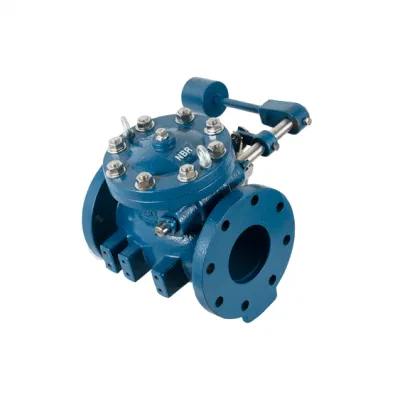

3, Can attach spring kit or counter weight to help the disc close faster, This could eliminate damageable water hammer.

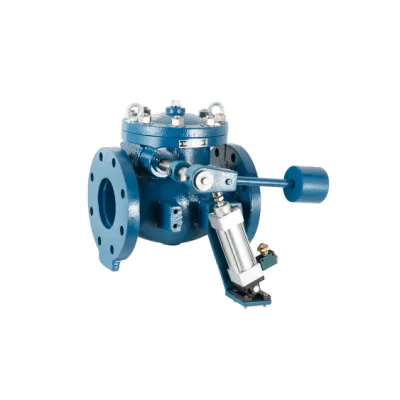

4, It can also attach the air cushion cylinder. At the beginning the valve close quickly. But when disc close to 70% close position, the air cushion cylinder will start to work and help the disc close slowly. This could prevent the medium in the pipe to build up pressure and damage the pipe system.

Packaging & Shipping



Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight

Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight


Company Profile

Shanghai Flow Valve &Fitting Co, Ltd. was founded in 1998, mainly in foreign trade export business, has invested in two professional manufacturing factories in Shanghai Jiading Waigang Industrial Zoneand Tianjin Wuqing Jingbin Industrial Park.

These two subordinate factories are responsible for the professional production of ANSl, DINBS, GB and other standards of ball valve, butterfly valve, gate valve, stop valve, balance valve, filter, plug valve, control valve and other series of products.

Nearly 80% of the company's products are exported to Europe,America, the Middle East, Southeast Asia and other parts of the world and we also conduct technical cooperation and OEM production with many European and American companies.

Shanghai Flow Valve & Fitting Co., Ltd. began to actively participate in major domestic engineering projects in 2003.

lt has established five sales centers in Shanghai, Beijing, Guangzhou, Xi'an and Chongqing, and its business covers northeast China, North China, northwest China,Southwest China, Central China, South China and other regions.

The sales network and after-sales network basically cover most regions of mainland China.




Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight



Certifications

Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight



Exhibition

Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight
Swing Check Valves with Lever Arm and Weight



FAQ

Q1: Can I have a sample order for valve?

A1:Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

Q2:Do you have any MOQ limit for valve order?
A2: Low MOQ, 1pc for sample checking is available.


Q3: How do you ship the goods and how long does it take to arrive?
A3: We usually ship by sea. It usually takes 30 days to arrive. Airline shipping also optional.


Q4:How to proceed an order for valve?
A4: Firstly let us know your requirements or application.
      Secondly We quote according to your requirements or our suggestions.
      Thirdly customer confirms the samples and places deposit for formal order.
      Fourthly We arrange the production.


Q5:Do you offer guarantee for the products?
A5: Yes, we offer 1 year warranty to our products.


Q6: Why choose us?
A6: We are a manufacturer, we have been manufacturing for over 20 years.
