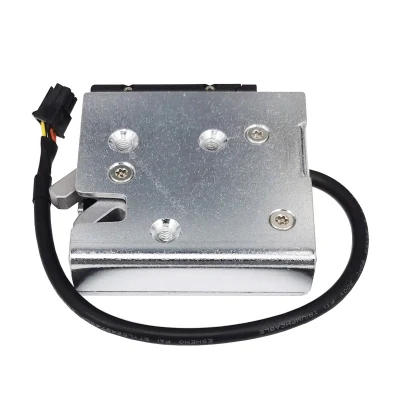

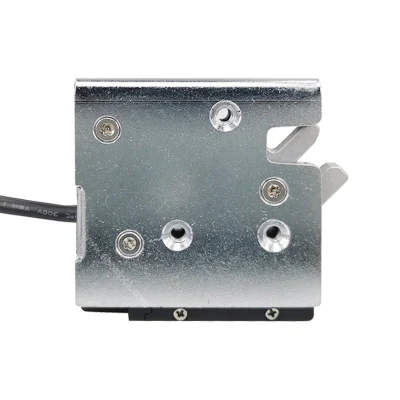

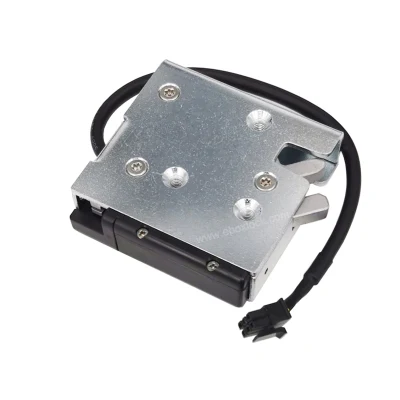

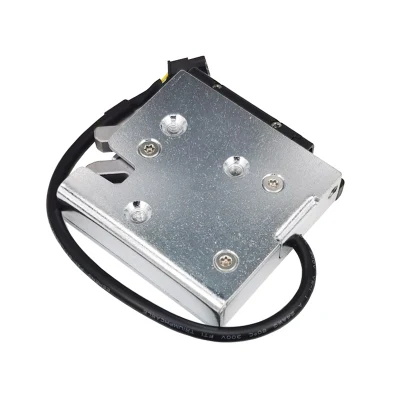

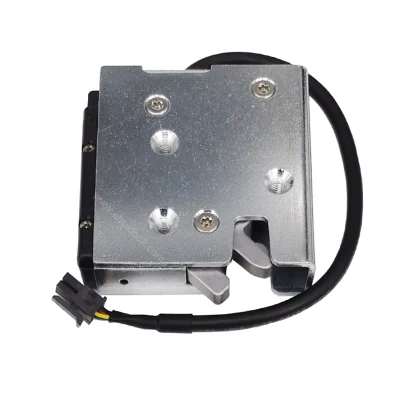

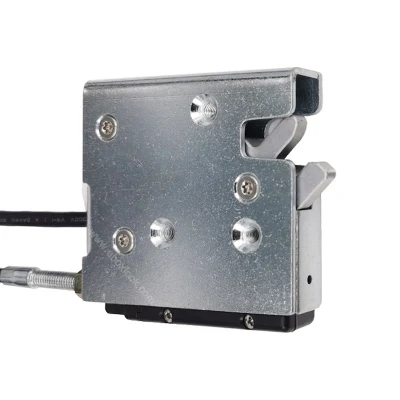

Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet

Get the ultimate protection for your outdoor industrial cabinet with our Weatherproof Electromechanical Rotary Latch. Designed for durability in any climate.
Request a Quote

PRODUCTS DETAILS

Basic Info.

Model NO.
MH8026SP
Certification
RoHS, FCC, CE
Application
Public Passage, Enterprise, Supermarket, Campus, Hospital, Parking, Warehouse, Hotel, Garage, Community, Parcel Delivery Locker
Working Principle
Electronically Controlled Lock
Function
Fail -Safe
Type
Gear Motor Lock
Operation Voltage
8-26VDC
Power Consumption
60mA
Holding Force
600kg
Material
Steel with Plating or Stainless Steel
Monitoring
Door Status
Spring Door Opening
Various Spring Tension
Cycle Testing
300,000 Cycles
Customization
OEM&ODM
Mechanical Override
Optional Override Kits
Control System
Smart Parcel Delivery Locker System
Transport Package
13cmx11cmx9cm
Specification
CE, RoHS, FC
Trademark
eboxlock
Origin
China
HS Code
83013000
Production Capacity
10K Per Month

Packaging & Delivery

Package Size
12.00cm * 11.00cm * 7.00cm
Package Gross Weight
0.380kg

Product Description

Outdoor Electromechanical Rotary Latch MH8026SP is an electric lock driven by gear-motor, which distinguishes it by low power consumption and high load capability. Designed with delay re-lock function, it allows flexibility of controlling the unlock time. An optional internal door sensor provides reporting of open/ close status and mechanical kits for manual override in case of power failure. With easy push-to-close operation, the latch builds an internal spring rod to push door open when electrified. It simplifies the access control of heavy duty vehicles and equipments.

Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet


Features

  • Tough metal construction, stainless steel option
  • Microprocessor controlled gear motor
  • Operates against heavy mechanical loads
  • Optional internal microswitch for reporting open/close status
  • Push to lock and electronic release
  • Corrosion-resistant version available for outdoor use
  • High strength and durability
  • Accept control inputs from any access control devices
Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet


Specifications
Operation Voltage: 8-26VDC ±10%
Power Consumption: 60mA
Standby Current: 20UA
Operation Mode: Fail Locked
Holding Force: 600KG
Cycle Rating: More than 1,000,000
MS Contact Rating: 5A @125V
Working Temperature: -20ºC ~ +60ºC
Dimensions LxWxH: 72mm*67mm*18mm
Weight: 330g
Protection Class: IP20




Applications:
  • Vending machine
  • Delivery parcel locker
  • Vending machine
  • Self-service sales kiosk
  • Cabinets
  • Security doors
  • Grills &gates
Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet

We offer customization for cable length and connector type to better meet the exact requirement of your application.
Options for customization
Voltage Current Trigger Spring Mounting holes Material Cable Connector
5V-26V

60mA

10N
25N
35N

M5x16 thread(standard)
M5x25 thru

Steel (standard)
Stainless steel

Twisted
RVV
Flat cable
Molex
KF2510
PH
RJ11

Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet


Weatherproof Electromechanical Rotary Latch with for Outdoor Industrial Cabinet
